Description: This is one in a family of products based on the most advanced CMOS mixed signal technology. It integrates image array, signal processing, timing and control circuitry, all on a single chip. It is ideal for applications requiring a small footprint, low power and low cost.

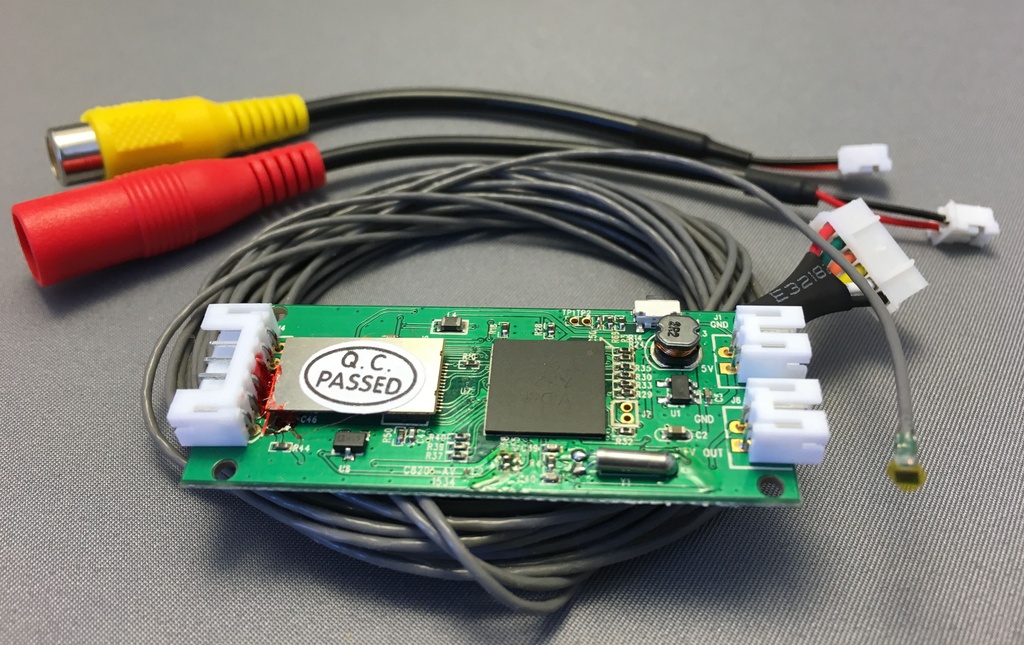

The camera is supplied with a C8201-420 back-end included. The C8201-420 is specially designed as an interface for the MuC30x-series micro camera modules. It has an analog video signal interface to connect to a TV set. It is ideal for applications requiring a small footprint, low power and low cost.

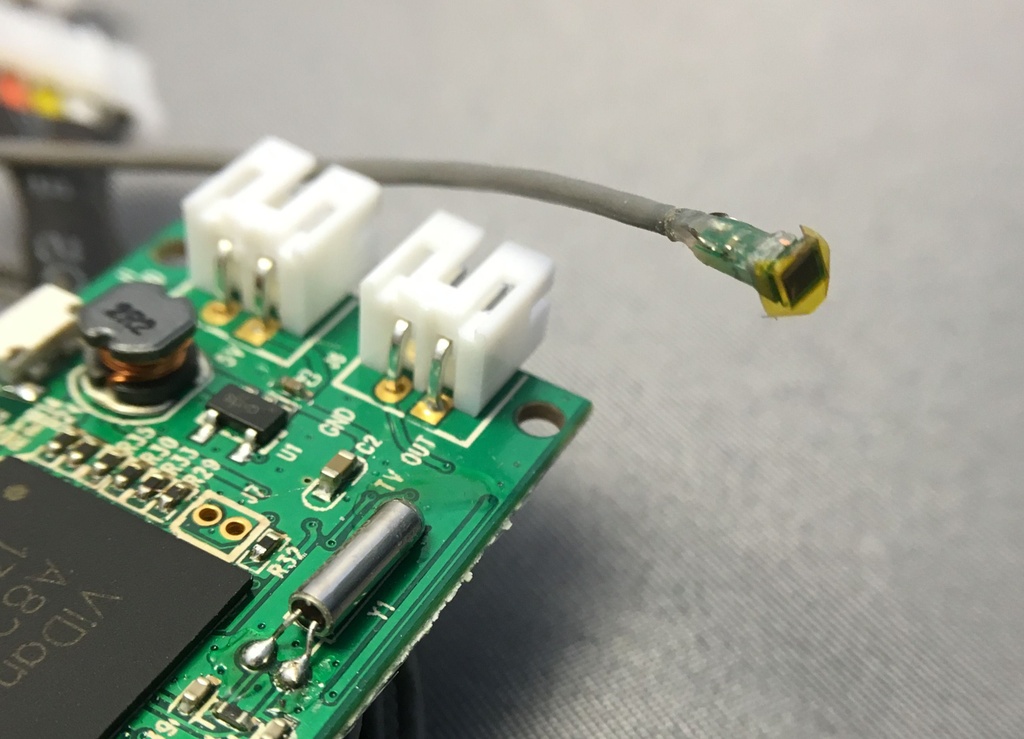

Extremely Small Size: 2.63 mm diameter!
Features:
- 2.63mm diameter for the sensor module
- 1.2mm diameter cable included: Length - 5m
- OV6930 CMOS image sensor
- Resolution 400x400
- 6pin connection
- Direct interface to TV monitor
- NTSC / PAL compatible
- Size : 25 x 70mm
- Low power consumption 120mA
- Plug and play
- DC5V
