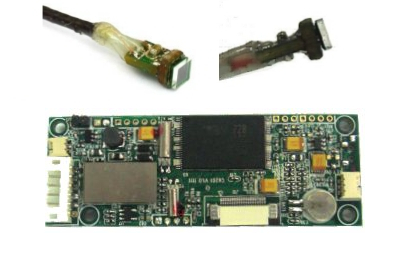

MuC301A-5m-C6201 Combo Camera Module w/special 5 Meter cabling (1.2mm diameter cable) with the C6201 Back-end

https://electronics123.odoo.com/web/image/product.template/5050/image_1920?unique=9f3bd77
(0 review)

SKU : MuC301A-5m-C6201
Skill Level : Assembled and Tested

Buy 10, Get 5% Off!
Buy 100, Get 10% Off!

MuC301A-5m-C6201

447.00 447.0 USD 447.00

447.00

Not Available For Sale

  • WeightMajor
  • WeightMinor

This combination does not exist.

Add to cart

Description: This is one in a family of products based on the most advanced CMOS mixed signal technology. It integrates image array, signal processing, timing and control circuitry, all on a single chip. It is ideal for applications requiring a small footprint, low power and low cost.

The camera is supplied with a C6201 back-end included. The C6201 is specially designed as an interface for the MuC30x-series micro camera modules. It has a built-in DSP as an interface for the MuC30x-series. It integrates image array, signal processing, timing and control circuitry, all on a single chip. It is ideal for applications requiring a small footprint, low power and low cost.

Extremely Small Size: 2.63 mm diameter!

Features:

  • 2.63mm diameter for the sensor module
  • 1.2mm diameter cable included: Length - 5m
  • OV6930 CMOS image sensor
  • Resolution 400x400
  • 6pin connection
  • Direct interface to TV monitor
  • NTSC / PAL compatible  (You are buying the NTSC version. Contact us if you need PAL version instead.)
  • Size : 25 x 70mm
  • Low power consumption 120mA
  • Plug and play
  • DC5V
PLEASE NOTE: No lens is included with this camera. You will have to find and attach a suitable lens. We may be able to accomodate your lens design/specs. Please email us your spec requirements for a quote. Also because of the extreme small size and delicate nature of this camera we cannot accept any damaged cameras back for exchange or refund.
