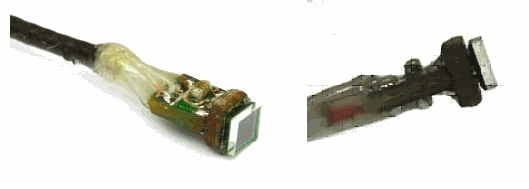

MuC301A Micro Camera Module - w/special 5 meter cable (with 1.2mm diameter cable)

https://electronics123.odoo.com/web/image/product.template/5049/image_1920?unique=234b0a0
(0 review)

SKU : MuC301- w/special 5m cable
Quantity on Hand : 1
Skill Level : Assembled and Tested
ROHS Compliant

Buy 10, Get 5% Off!
Buy 100, Get 10% Off!

MuC301- w/special 5m cable

345.00 345.0 USD 345.00

345.00

Not Available For Sale

This combination does not exist.

Add to cart

Description: This is one in a family of products based on the most advance CMOS mixed signal technology. It integrates image array, signal processing, timing and control circuitry, all on a single chip. It is ideal for applications requiring a small footprint, low power and low cost.

PLEASE NOTE: No lens is included with this camera. You will have to find and attach a suitable lens. We may be able to accommodate your lens design/specs. Please email us your spec requirements for a quote.

For this camera with a lens already attached see the Muc302 model instead.

Also because of the extreme small size and delicate nature of this camera we cannot accept any damaged cameras back for exchange or refund.

Extremely Small size: 2.63 mm diameter!

Features:

  • 2.63mm diameter for the sensor module
  • OV6930 CMOS image sensor
  • Resolution 400x400
  • 6pin connection
  • 5m cable included
  • This version (A) of the camera comes with 1.2mm diameter cable
  • Lens not included (need your specs to make)

NOTE: This is only the camera. You will need a back-end to make this unit work - either a USB (C3842), TV/DVR (C6201 or C6203), or a TFT (C9203).
