MuC301-C6203 Combo Camera Module
SKU : MuC301-C6203
Skill Level : Assembled and Tested
Buy 10, Get 5% Off!
Buy 100, Get 10% Off!
30-day money-back guarantee
Free Shipping in the U.S. on Orders over $75
We offer worldwide shipping as well
Buy now and choose from several shipping methods

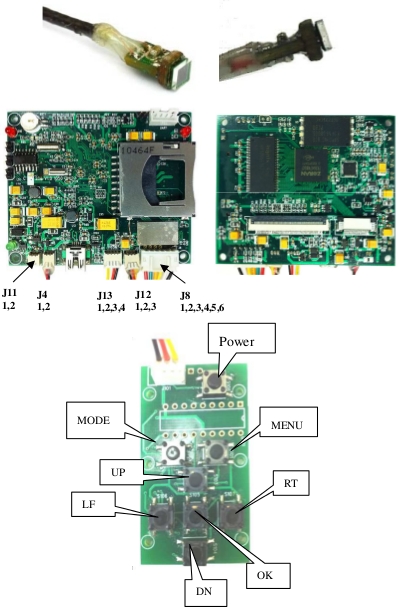

Description: This is one in a family of products based on the most advanced CMOS mixed signal technology. It integrates image array, signal processing, timing and control circuitry, all on a single chip. It is ideal for applications requiring a small footprint, low power and low cost.
Extremely Small size: 2.63 mm diameter!
Features:
PLEASE NOTE: No lens is included with this camera. You will have to find and attach a suitable lens. We may be able to accomodate your lens design/specs. Please email us your spec requirements for a quote. Also because of the extreme small size and delicate nature of this camera we cannot accept any damaged cameras back for exchange or refund.
Extremely Small size: 2.63 mm diameter!
Features:
- 2.63mm diameter for the sensor module
- 2.0mm diameter cable included: Length - 1m
- OV6930 CMOS image sensor
- Resolution 400x400
- 6pin connection
- Direct interface to TV monitor
- PAL/NTSC TV system
- JPG or AVI recording
- VGA 30fps
- DC5V
- Storage to SD card, up to 16G
- Includes keyboard and cables
PLEASE NOTE: No lens is included with this camera. You will have to find and attach a suitable lens. We may be able to accomodate your lens design/specs. Please email us your spec requirements for a quote. Also because of the extreme small size and delicate nature of this camera we cannot accept any damaged cameras back for exchange or refund.
