MuC301A-C3842 Combo Camera Module
SKU : MuC301-C3842
Skill Level : Assembled and Tested
Buy 10, Get 5% Off!
Buy 100, Get 10% Off!
30-day money-back guarantee
Free Shipping in the U.S. on Orders over $75
We offer worldwide shipping as well
Buy now and choose from several shipping methods

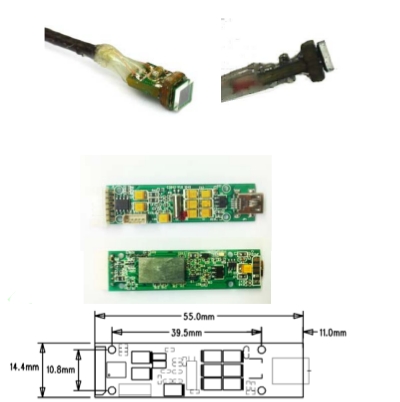

Description: This is one in a family of products based on the most advanced CMOS mixed signal technology. It integrates image array, signal processing, timing and control circuitry, all on a single chip. It is ideal for applications requiring a small footprint, low power and low cost.
Extremely Small size: 2.63 mm diameter!
Features:
PLEASE NOTE: No lens is included with this camera. You will have to find and attach a suitable lens. We may be able to accommodate your lens design/specs. Please email us your spec requirements for a quote. Also because of the extreme small size and delicate nature of this camera we cannot accept any damaged cameras back for exchange or refund.
Extremely Small size: 2.63 mm diameter!
Features:
- 2.63mm diameter for the sensor module
- Cable diameter 1.2mm
- OV6930 CMOS image sensor
- Resolution 400x400
- 6pin connection
- EV program provided
- USB2.0 compatible
- size : 14.5 x 55 mm
- low power consumption 60mA
- 1m cable included
PLEASE NOTE: No lens is included with this camera. You will have to find and attach a suitable lens. We may be able to accommodate your lens design/specs. Please email us your spec requirements for a quote. Also because of the extreme small size and delicate nature of this camera we cannot accept any damaged cameras back for exchange or refund.
This is a preview of the recently viewed products by the user.
Once the user has seen at least one product this snippet will be visible.
Once the user has seen at least one product this snippet will be visible.
Recently Viewed Products
Documentation and Downloads
- Data sheet for the MuC301-C3842
- MuC301-C3842 user manual
- MuC30x-C3842 Demo Software (Works in Windows Vista 32-bit)
