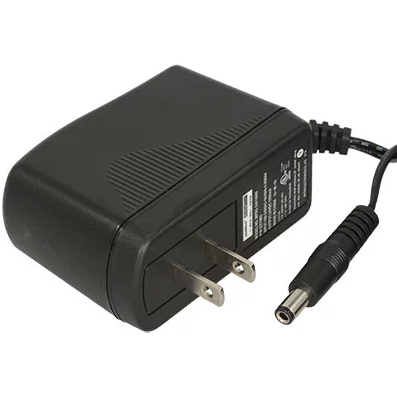

24 Volt DC 1 Amp 24 Watt Wall Adapter 2.5mm Plug
SKU : MTR-18028
Quantity on Hand :
51
Skill Level : Assembled and Tested
ROHS Compliant
Buy 10, Get 5% Off!
Buy 100, Get 10% Off!
30-day money-back guarantee
Free Shipping in the U.S. on Orders over $75
We offer worldwide shipping as well
Buy now and choose from several shipping methods
Specifications
- Output voltage: 24 VDC
- Output current: 1 A (1000 mA)
- Output connector: 2.5 x 5.5mm, center-positive female barrel plug
- Case color: Black
- Weight: 0.25 lbs.
- Agency approvals: UL, CUL, CEC Level V
| Specification | Value |
| Primary Output Voltage (VDC) | 24 |
| Output Current (A) | 1 |
| Maximum Output Power (W) | 24 |
| Input Voltage (VAC) | 100 to 240 |
| Input Frequency | 50 to 60 |
| Maximum Input Current (A) | 0.65 |
| Output Connector Type | Cylindrical Female |
| Output Connector Diameters | 2.5mm x 5.5mm |
| Polarity | Center Positive |
| Number of Outputs | 1 |
| Output Voltage (VDC) | 24 |
| Product Type | AC to DC Power Supply |
| Agency Approvals | UL/CUL/CEC |
| Color | Black |
| Type | Auto Switching |
| Style | Wall Mount |
| Product Note | Level V |
