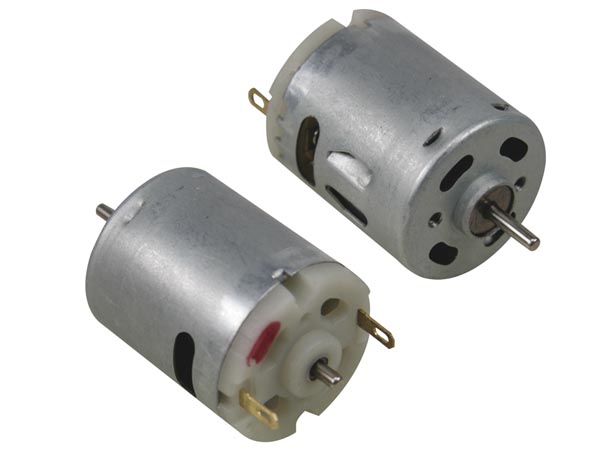

12DC Motor 160mA 11500RPM

(0 review)

SKU : MOT3N
Quantity on Hand : 8
Skill Level : Component or Part
ROHS Compliant

Buy 10, Get 5% Off!
Buy 100, Get 10% Off!

$ 4.95 4.95 USD $ 4.95

$ 4.95

  • WeightMajor
  • WeightMinor

This combination does not exist.

Terms and Conditions

Share

NOTE: This is for one unit of the Motor.

Specifications

  • voltage:

    • operating voltage: 6-24V

    • nominal: 12V

  • no load:

    • speed: 11000rpm

    • current: 0.18A

  • at max. efficiency:

    • speed: 8768rpm

    • current: 0.726A

  • torque: 62.5gcm

  • output: 5.617W

  • eff.: 59.58%

  • stall torque: 4.27oz-in

  • dimensions (in):

    • A: 0.35

    • B: 0.45

    • C: 1.28

    • D: Ø1.10

    • E: 2.01

    • F: Ø0.09

    • G: Ø0.39

    • H: Ø1.10

    • I: M2.5 (.0984") x 0.018

    • J: 0.63
