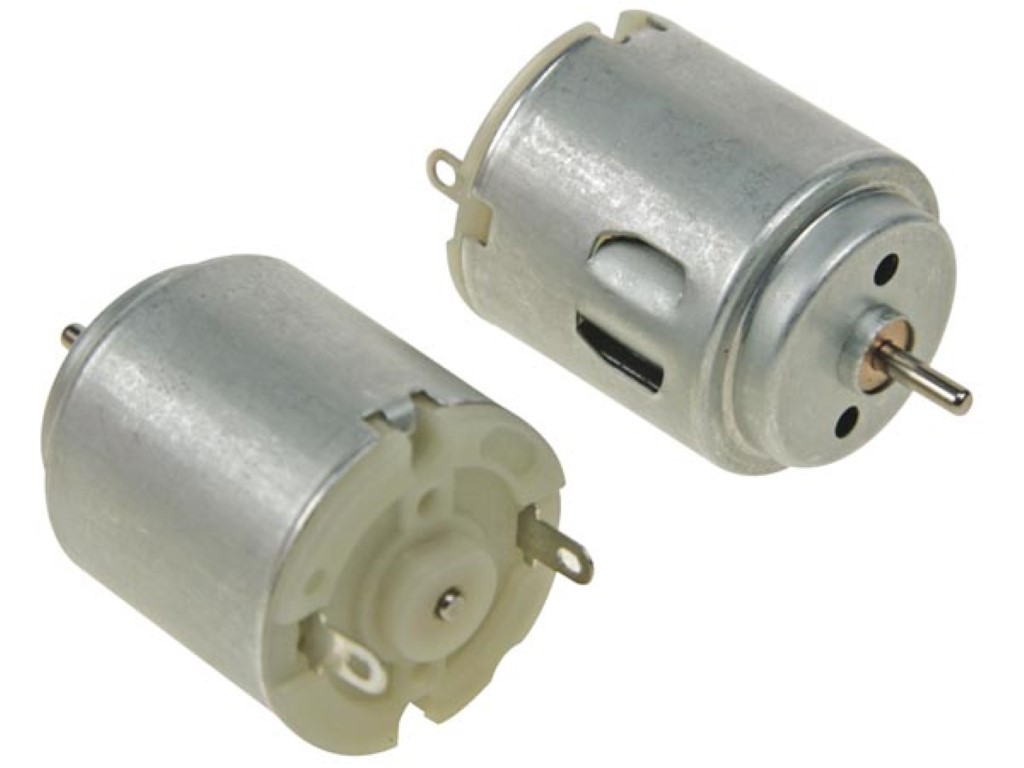

3VDC Motor 350mA 13800RPM

(0 review)

SKU : MOT1N
Quantity on Hand : 3
Skill Level : Component or Part
ROHS Compliant

Buy 10, Get 5% Off!
Buy 100, Get 10% Off!

MOT1N

$ 4.95 4.95 USD $ 4.95

$ 4.95

    This combination does not exist.

    Share

    NOTE: This is for one unit of the Motor

    Specifications:
    • voltage:
      • operating range: 1.5-3V
      • nominal: 3V
    • no load:
      • speed: 14200rpm
      • current: 0.3A
    • at max. efficiency:
      • speed: 11780rpm
      • current: 1.33A
      • torque: 15.7gcm
      • output: 2.37W
      • eff.: 59.5%
    • stall torque: 115.0gcm
    • dimensions:
      • A: 6.7
      • B: 11.5
      • C: 23.5
      • D: Ø23.8
      • E: 38.0
      • F: Ø2.0
      • G: Ø6.15
      • H: Ø19.0
      • I: 11.5
      • J: Ø2.3
      • K: Ø23.8
