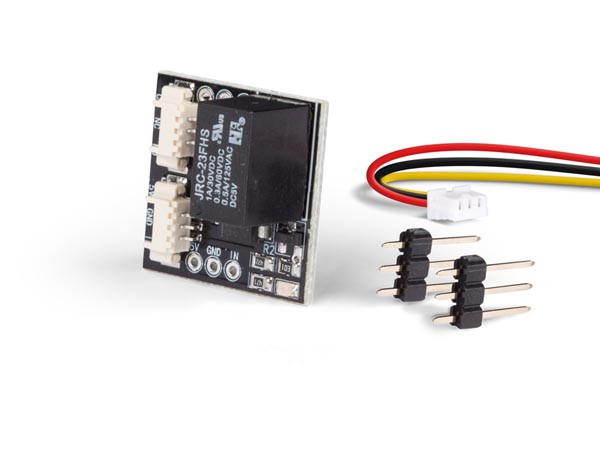

5 V RELAY BOARD

(0 review)

SKU : MM105
Quantity on Hand : 5
Skill Level : Assembled and Tested

Buy 10, Get 5% Off!
Buy 100, Get 10% Off!

9.95 9.950000000000001 USD 9.95

9.95

  • WeightMajor
  • WeightMinor

This combination does not exist.

Terms and Conditions

Description: Small, versatile and easy to use! Use this SMD prototyping board by connecting it to your existing circuits in order to perform tests and build prototypes.

Specifications:

  • converts digital (0/3-5 V) signal to relay 1 A contact
  • suitable for Arduino®
  • power supply: 5 V
  • relay outputs:
    • COM
    • NC
    • NO
  • power consumption relay: 40 mA
  • control signal: between 3 V and 12 V
  • power consumption input signal:
    • 0,6 mA at 3,3 V
    • 0,95 mA at 5 V
    • 2,5 mA at 12 V
  • max. switching current: 1 A
  • max. switching Voltage: 125 Vca or 60 Vcc

Documentation and Downloads
