FM/RDS RECEIVER MINI MODULE

  • WeightMajor
  • WeightMinor

$ 9.95 $ 9.95 9.950000000000001 USD

$ 9.95

This combination does not exist.

Add to Cart

SKU : MM100
Quantity on Hand : 5
Skill Level : Assembled and Tested

Buy 10, Get 5% Off!
Buy 100, Get 10% Off!

30-day money-back guarantee
Free Shipping in the U.S. on Orders over $75
We offer worldwide shipping as well
Buy now and choose from several shipping methods

Terms and Conditions

Share

Description: Small and functional FM receiver with access to an easy to use Arduino library!

Specifications:

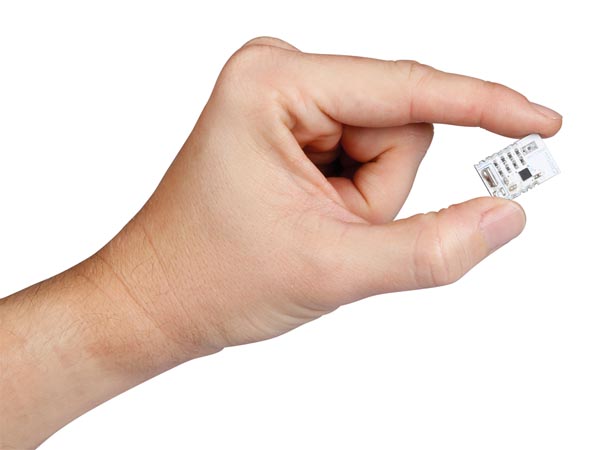

  • small size
  • RDS/RBDS support
  • volume control
  • automatic frequency control
  • automatic gain control
  • connector pitch matches standard breadboard pitch
  • line level analog output
  • Arduino® library available

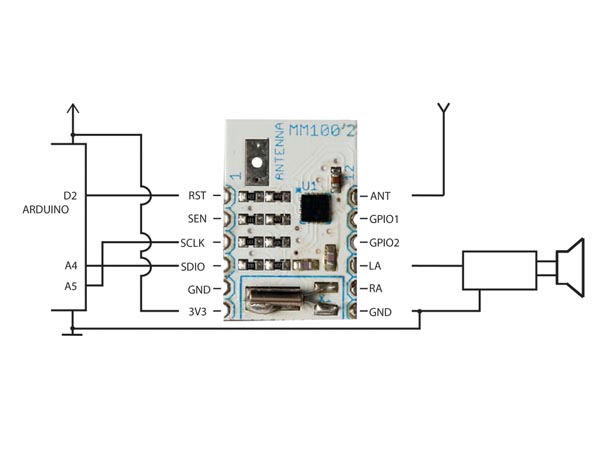

  • interface: 2-wire or 3-wire
  • FM range: worldwide FM support
  • power/Logic level: 3.3 V
  • max. current: 20 mA
  • sensitivity: 1.7 µ Vemf
  • dimensions: 23 x 15 mm (ca. 0.9 x 0.59 inch)
