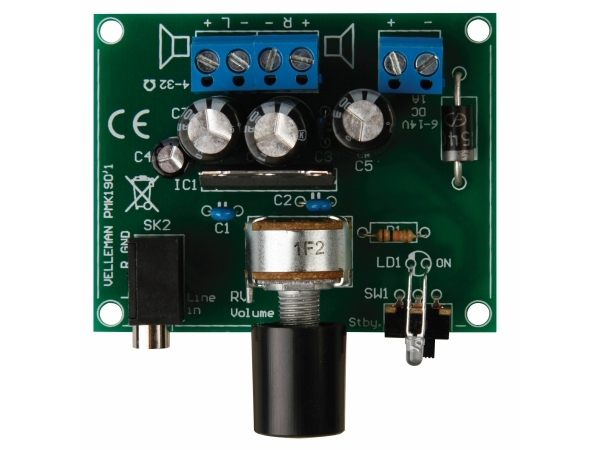

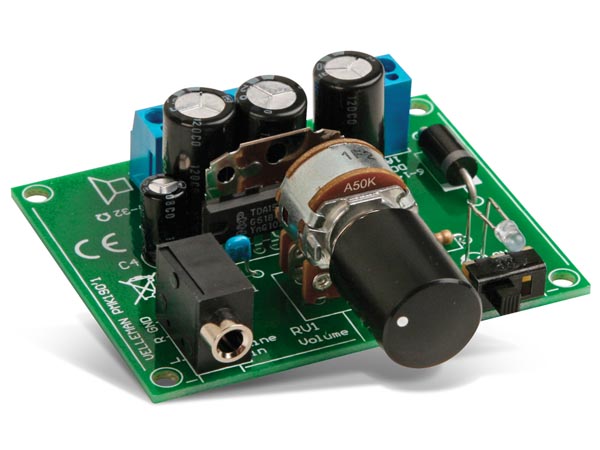

2X5W Amplifier for MP3 Player (Assembled)

(0 review)

SKU : MK190-TBA
Skill Level : Assembled and Tested
ROHS Compliant

Buy 10, Get 5% Off!
Buy 100, Get 10% Off!

33.95 33.95 USD 33.95

33.95

    This combination does not exist.

    Terms and Conditions

    Features:

    • Big sound from a small unit
    • Low distortion
    • Input: stereo 3.5mm jack
    • Volume adjust complete with attractive knob
    • Slide on/off switch
    • Blue indicator led

    NOTE: Please allow 24 hours for assembly!

    Specifications:

    • 2 x 5Wrms (10% THD @ 4ohm / supply 14V)
    • Sensitivity: 400mVrms for full output
    • Freq. response: 30Hz - 100kHz (-3dB / 8 ohm)
    • Power supply: 6-14VDC / 1A max. (example Velleman PSSE1210)
    • Speaker impedance: 4-32 ohm
    • Dimensions (wxdxh): 66x53x25mm / 2.59x2.08x0.98"
