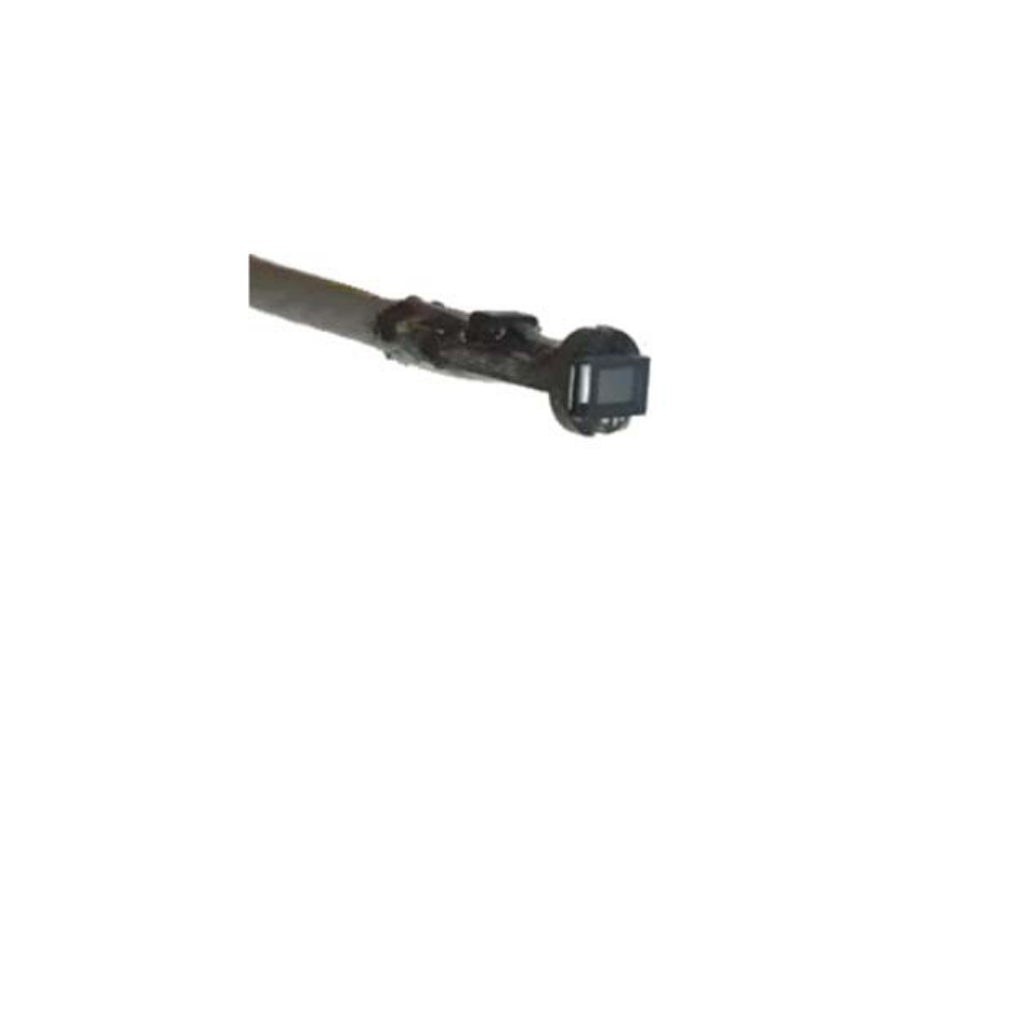

mCam701 HD Camera Module
(0 review)

SKU : mCam701
Quantity on Hand : 2
Skill Level : Assembled and Tested

Buy 10, Get 5% Off!
Buy 100, Get 10% Off!


289.00 289.0 USD 289.00


Not Available For Sale

  • WeightMajor
  • WeightMinor

This combination does not exist.

Add to cart


Description: This is one in a family of products based on the most advance CMOS mixed signal technology. It integrates image array, signal processing, timing and control circuitry, all on a single chip. It is ideal for applications requiring a small footprint, low power and low cost.

Small Tip Size: 3.8 OD x 8mm!

NOTE: This camera does not come with a lens. End user to supply and mount own suitable lens.


  • Tip size 3.8 OD x 8mm

  • Resolution: HD1280x720 pixels

  • Operation voltage 2.8V

  • MIPI interface

  • Low power consumption

  • Cable size: 1.8mm OD

  • Cable length: 1M (upto 4M)

Application Example:

  • Inspection device

  • Endoscope

Pin Description (tentative):

  1. VDD 2.8VDC

  2. GND Ground

  3. CLK Clock input from backend

  4. EVD D 1.5VDC

  5. SDA I2C data

  6. SCL I2C clock

  7. MCP MIPI clock Positive o/p

  8. MCN MIPI clock Negative o/p

  9. MDP MIPI Data Positive o/p

  10. MDN MIPI Data Negative o/p

PLEASE NOTE: Because of the extremely small size and delicate nature of this camera we cannot accept any damaged cameras back for exchange or refund.

NOTE: Backend Module Selection is the USB-C8207 you will need this to operate this module.
