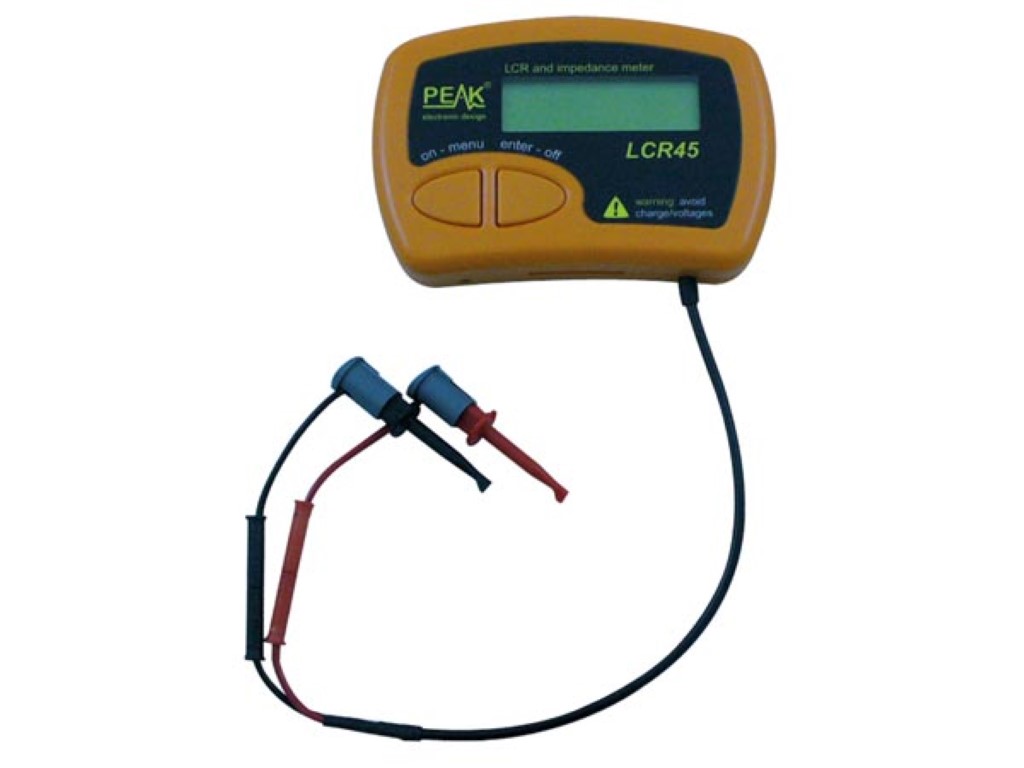

LCR AND IMPEDANCE METER

https://electronics123.odoo.com/web/image/product.template/12211/image_1920?unique=a0daa4d
(0 review)

SKU : LCR45
Quantity on Hand : 1
Skill Level :

Buy 10, Get 5% Off!
Buy 100, Get 10% Off!

153.85 153.85 USD 153.85

153.85

Not Available For Sale

  • WeightMajor
  • WeightMinor

This combination does not exist.

Add to cart

Description:

  • supplied with removable, gold-plated hook probes
  • fluid measurements with hold function
  • automatic or manual component type
  • automatic or manual test frequency, DC, 1 kHz,15 kHz or 200 kHz
  • enhanced measurement resolution: 0.2 µH, 0.2 pF and 0.2 Ohm
  • easy menu system for user settings
  • enhanced compensation for component parasitics and losses (such as core losses, etc.)
  • automatic or manual power-off
  • user manual: English only

Features:

Display type Digital


  • Electrical data
  • Capacity range: 0.5 pF to 10000 µF
  • resolution: 0.2 pF
  • accuracy: ± 1.5 % ± 0.6 pF
  • Resistance specifications
  • range: 0 Ohm to 2 MOhm
  • resolution: 0.1 Ohm
  • accuracy: ± 1.0 % ± 0.6 Ohm


Technical data

  • Inductance specifications range: 1 µH to 10 H
  • resolution: 0.2 µH
  • accuracy: ± 1.5 % ± 0.6 µH
  • Passive component impedance
  • Re & Im: ± 1.5 % ± 10 LSD
  • magnitude: ± 1.5 % ± 10 LSD
  • phase: ± 5 %
  • Measurement sample rate 0.5-2 Hz
  • Peak test current thru s/c -3.25-3.25 mA
  • Peak test voltage across o/c -1.05-1.05 V
  • Sine purity +60 dB 3rd harmonic
  • Test frequency accuracy
  • 1 kHz: ± 0.5 %
  • 14.9254 kHz: ± 0.5 %
  • 200 kHz: ± 0.5 %


Environmental data

  • Operating temperature °C 10-40 °C
  • Operating temperature °F 50-104 °F


Operational properties

  • Battery voltage rating range 8.5-13 V
  • Instruction manual languages English


Power supply

  • Battery required
  • Number of batteries 1
  • Battery operated
  • Battery composition Alkaline
  • Battery IEC size A23 (8LR932 ,1811A, 3LR50, 8LR23, 8LR932, AS23S, E23A, GP12A, GP23, GP23A, K23A, L1018, LR23A, MN21, MN23, P23GA, VR22, V23GA)


Included

  • Test leads


Product basic info

  • Colour unit Orange
  • Width unit 20 mm
  • Weight unit 165 g
  • Height unit 14 mm
  • Depth unit 3 mm
  • Additional colour Black
