1. All Products
  2. F-3.6mm Lens ONLY (no holder) with Built-in IR CUT Filter
Public Pricelist

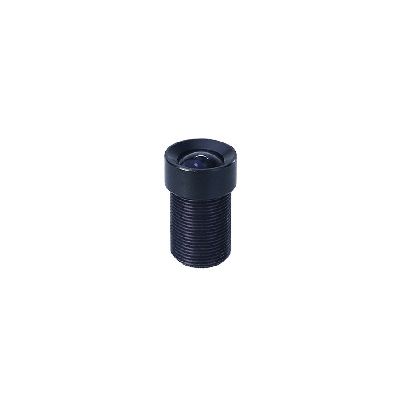

F-3.6mm Lens ONLY (no holder) with Built-in IR CUT Filter

(0 review)

SKU : L36IR
Quantity on Hand : 20
Skill Level : Component or Part

Buy 10, Get 5% Off!
Buy 100, Get 10% Off!

L36IR

$ 9.95 9.950000000000001 USD $ 9.95

$ 9.95

    This combination does not exist.

    Share

    This product is no longer being produced and will no longer be sold once the stock we have on hand is sold. Thank you.

    Specifications:

    • IR cut filter : Yes

    • Focal length: 3.6mm

    • Aperture (D/f'): 1/2.0

    • Horizontal field: 90ᵒ

    • Minimum Object Distance (M.O.D.) (m): 0.2

    • Format: 1/3"

    • Mount: M12 x 0.5

    • Dimension (D x L mm): φ14 x 13.7

    • Weight: 4.5g

    PLEASE NOTE: This is only the lens (no holder).
