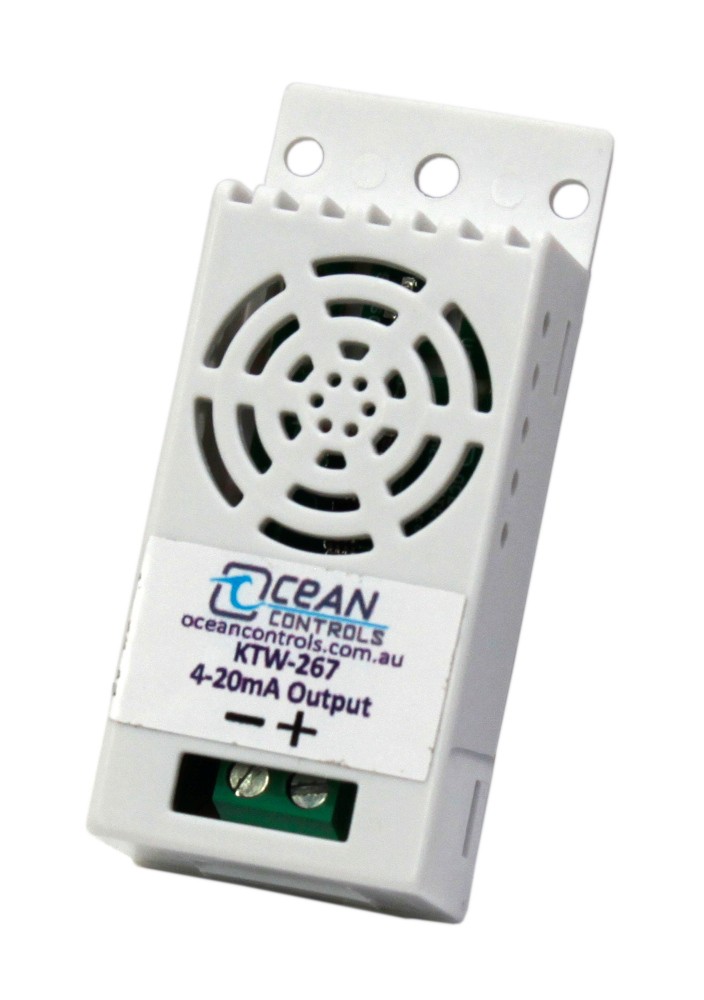

Loop Powered Temperature Sensor Wall Mount

https://electronics123.odoo.com/web/image/product.template/8207/image_1920?unique=01b6919
(0 review)

SKU : KTW-267
Quantity on Hand : 4
Skill Level : Assembled and Tested

Buy 10, Get 5% Off!
Buy 100, Get 10% Off!

KTW-267

54.95 54.95 USD 54.95

54.95

Not Available For Sale

  • WeightMajor
  • WeightMinor

This combination does not exist.

Add to cart

The KTW-267 is the Wall mounting version of KTA-267. This is a simple 4 to 20 mA output loop powered temperature sensor with measurement range from -10°C to +125°C designed for monitoring RTU and PLC cabinet temperatures.


Specification:

  • Power Supply: Up to 40 V Loop Voltage, 8.1 V Compliance Voltage
  • Maximum Current: 20mA
  • Output: 4 to 20 mA
  • Measurement Range: -10°C to 150°C
  • Ideal for measuring cabinet temperature for RTUs and PLCs
  • Operating Temperature: -10°C to 70°C
  • Typical Accuracy: ±0.5°C
  • Worst case Accuracy of ±2°C at 25°C
  • Worst case Accuracy of ±3°C at 150°C
  • Wall Mount enclosure
  • Dimensions: 65L x 30W x 20H (mm)

Typical setup:
