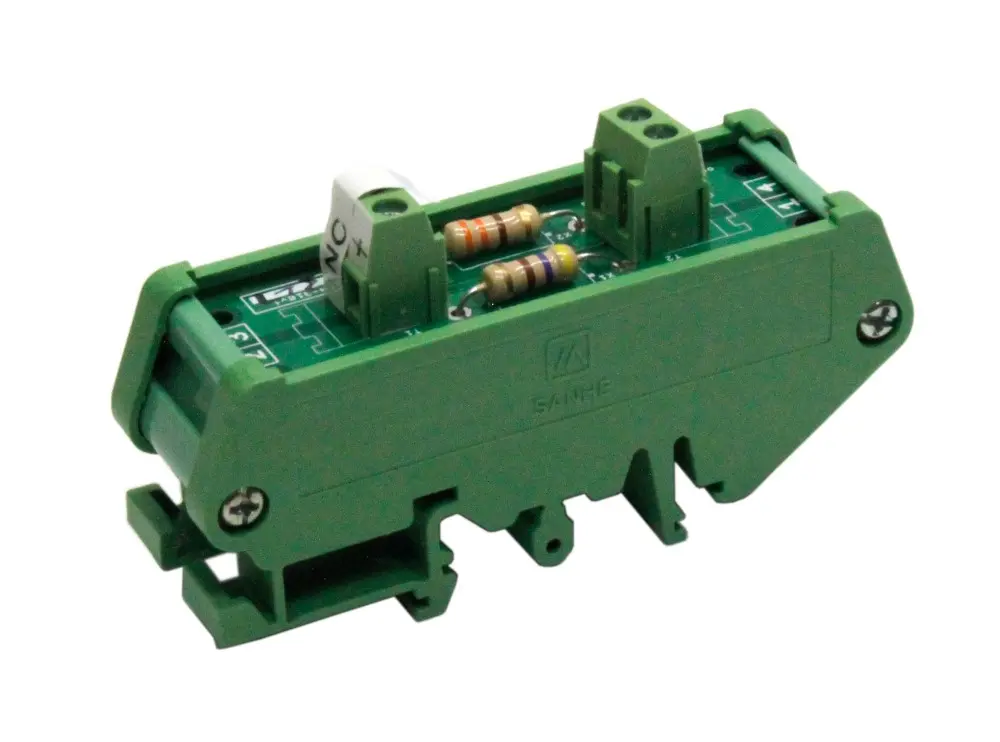

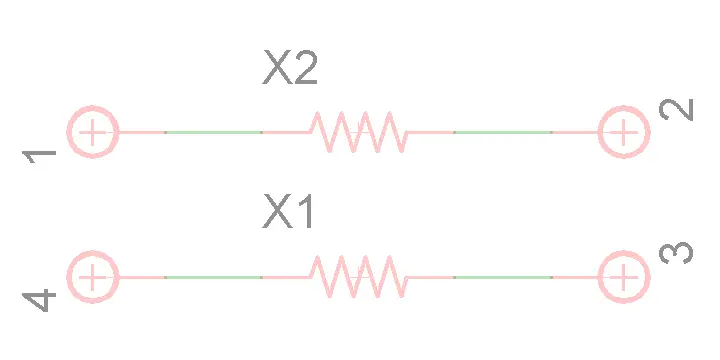

470 Ohm & 330 Ohm Resistive Divider, for stepping down a 24V DC supply to 10V. Useful as a feed voltage to a potentiometer for 0-10V control for VSD, etc.
Supplied with DIN rail mounting.
- Accuracy: 5%
- Dimensions: 90L x 22W x 47H (mm)
- Power Dissipation: 1 Watt
