4 Channel Opto-Isolator on DIN-rail Mount

https://electronics123.odoo.com/web/image/product.template/8254/image_1920?unique=dda2498
(0 review)

SKU : KTD-258
Skill Level : Assembled and Tested

Buy 10, Get 5% Off!
Buy 100, Get 10% Off!

KTD-258

79.00 79.0 USD 79.00

79.00

Not Available For Sale

  • WeightMajor
  • WeightMinor

This combination does not exist.

Add to cart

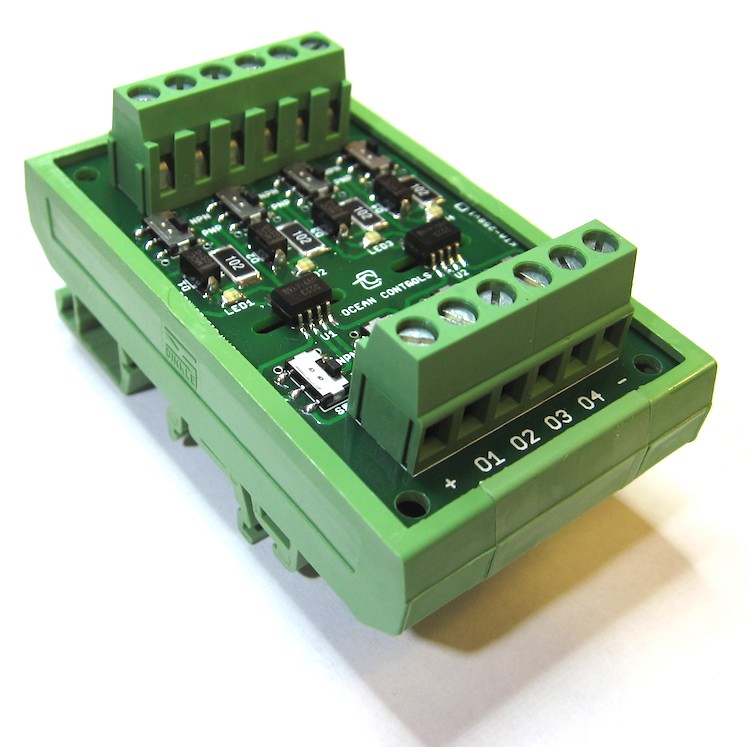

Description: The KTD-258 is a 4 channel opto-isolator with the ability to take signals from NPN, PNP, dry-contact and push-pull type sensors and present isolated NPN or PNP-style outputs. Each channel has a switch for selectable input and output configurations.

The card can be used to convert PNP sensors for use with NPN style inputs on a PLC or vice-versa. A 1,000 V isolation barrier between input and output sides prevents ground loops and electrical noise from coupling into your control system.

Features:

  • 4 channels
  • Indicator LEDs on each channel
  • NPN or PNP style input for each input selectable by a switch
  • NPN or PNP style output for each input selectable by a switch
  • 1,000 V Isolation from input to output side
  • DIN-rail Mount

Specifications:

  • Maximum Input Voltage: 30VDC
  • Maximum Input Current: 30mA cont., 3A peak
  • Input Resistance: Approx. 1.3kΩ
  • Maximum Output Open Circuit Voltage: 30VDC
  • Maximum Output Current: 75mA
  • Output Saturation Voltage: 1V
  • DC Current Transfer Ratio: ≥ 500%
  • Isolation Voltage: 1,000V (Input Side to Output Side)
  • Turn On Time: 15μs
  • Turn Off Time: 30μs
  • 4 Channels:
    • Indicator LEDs on each channel
    • NPN or PNP style input for each input selectable by a switch
    • NPN or PNP style output for each output selectable by a switch
  • Operating Temperature: -55 to 100°C
  • DIN Rail Mount
  • Dimensions: 90L x 45W x 31H (mm)
