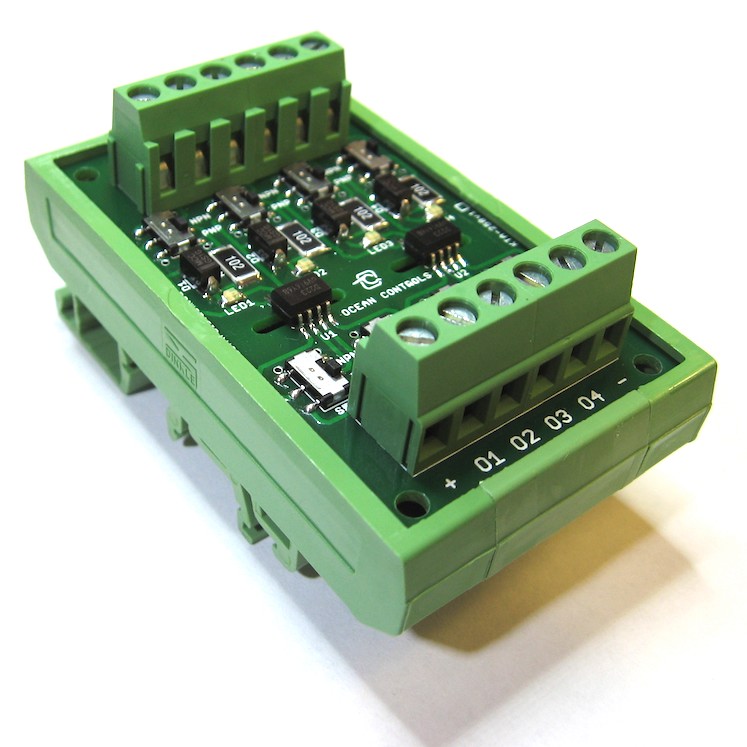

4 Channel Opto-Isolator on DIN-rail Mount

(0 review)

SKU : KTD-258
Skill Level : Assembled and Tested

Buy 10, Get 5% Off!
Buy 100, Get 10% Off!

KTD-258

$ 79.00 79.0 USD $ 79.00

$ 79.00

  • WeightMajor
  • WeightMinor

This combination does not exist.

Description: The KTD-258 is a 4 channel opto-isolator with the ability to take signals from NPN, PNP, dry-contact and push-pull type sensors and present isolated NPN or PNP-style outputs. Each channel has a switch for selectable input and output configurations.

The card can be used to convert PNP sensors for use with NPN style inputs on a PLC or vice-versa. A 1,000 V isolation barrier between input and output sides prevents ground loops and electrical noise from coupling into your control system.

Features:

  • 4 channels
  • Indicator LEDs on each channel
  • NPN or PNP style input for each input selectable by a switch
  • NPN or PNP style output for each input selectable by a switch
  • 1,000 V Isolation from input to output side
  • DIN-rail Mount
