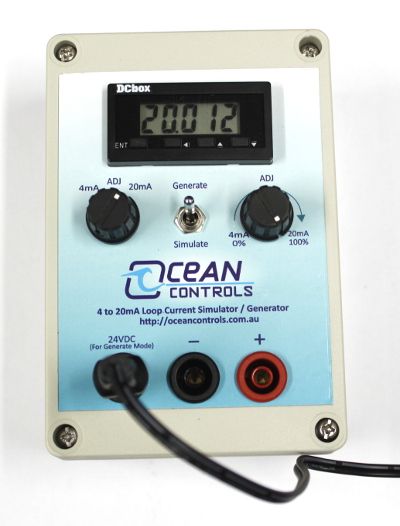

4-20mA Loop Current Simulator/ Generator with LCD Display

  • WeightMajor
  • WeightMinor

145.00 145.00 145.0 USD


This combination does not exist.

Add to Cart

SKU : KTB-366
Quantity on Hand : 1
Skill Level : Assembled and Tested

Buy 10, Get 5% Off!
Buy 100, Get 10% Off!

30-day money-back guarantee
Free Shipping in the U.S. on Orders over $75
We offer worldwide shipping as well
Buy now and choose from several shipping methods

Terms and Conditions


Description: The KTB-366 is a 4-20mA loop powered current calibrator suitable for testing 2 and 3 wire transducers.

Contains a three position rotary switch, that selects between these operations:

  • 4 mA – used to inject 4 mA into the loop.
  • ADJ – used in conjunction with the potentiometer to select 4 mA, 20mA or any value in between.
  • 20 mA – used to inject 20mA into the loop.

Two operating modes:

Simulate mode: Simulates 2-wire, loop-powered transducer. This mode uses an existing power supply or excitation connection on the PLC/DAQ equipment.

Generate mode: Generates a 4-20mA powered signal that can drive the input on a PLC/DAQ. In this mode, the KTB-366 is more like a 3-wire transducer or a signal conditioner. This mode requires power to be fed to the KTB-366 via its DC power jack. (DC power plug not included)


  • Suitable for 2 and 3 wire transducers
  • Banana and DC Jack connections
  • 40V Maximum Loop Voltage
  • Sturdy Enclosure
  • Battery LCD Display (KTB-366)
  • Display Scalable to Engineering Units
  • 0 to 50 °C operating range
