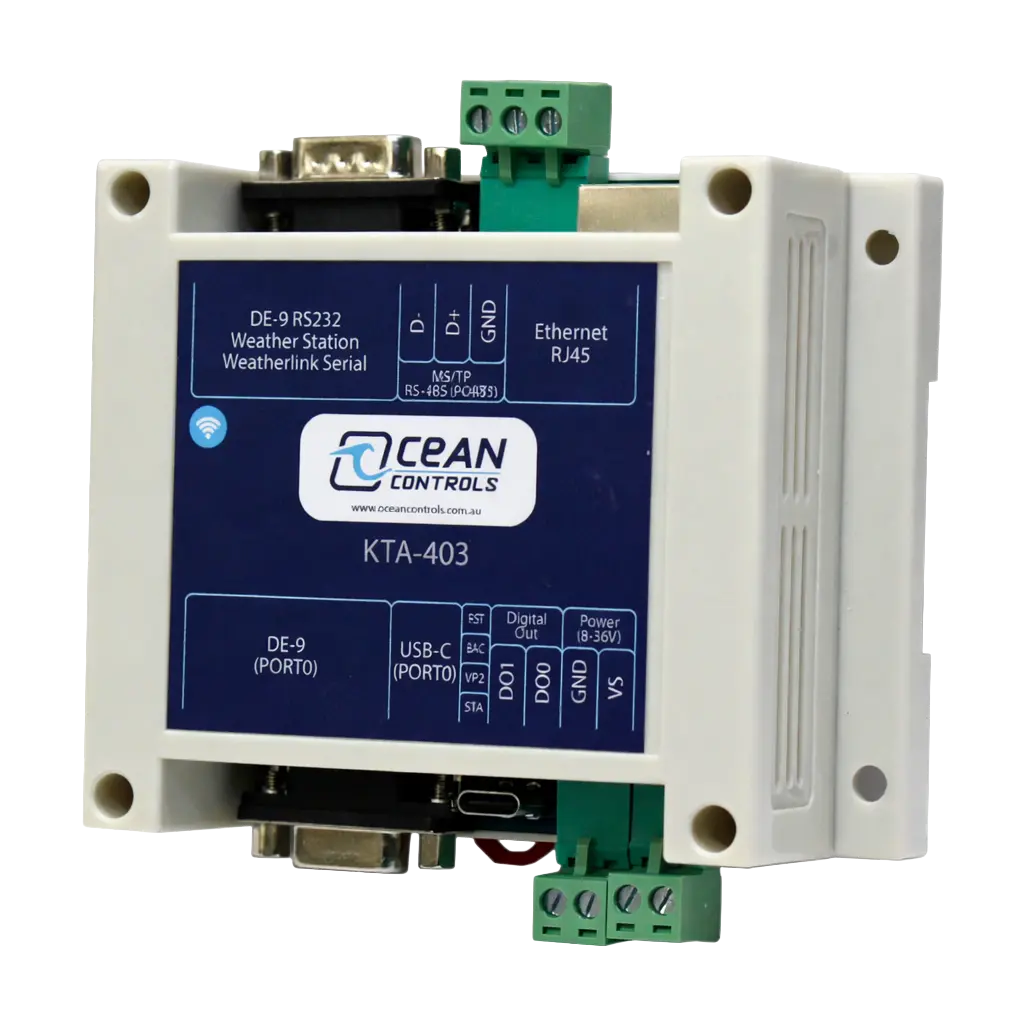

The KTA-403 is designed to connect Modbus TCP Clients with one or more BACnet MS/TP Slaves. It features an intuitive web-based configuration interface, allowing users to map BACnet objects from multiple salves to the desired Modbus registers.
Specifications:
- Power Supply: 12 - 36VDC
- Power Consumption: 1.2W @12V, 0.96W @24V
- Operating Temperature: 0 to 70°C
- Ports: 1 x RS485; 1 x Ethernet
- Ethernet Connector: RJ45 Connector
- BACnet Connector: 3-way 5.08mm removable screw terminal
- BACnet and Modbus network parameters are easily configurable by Web Interface
- Dimensions: 115 × 90 × 40 mm.
- The unit can be screwed to a panel or DIN rail mounted.
