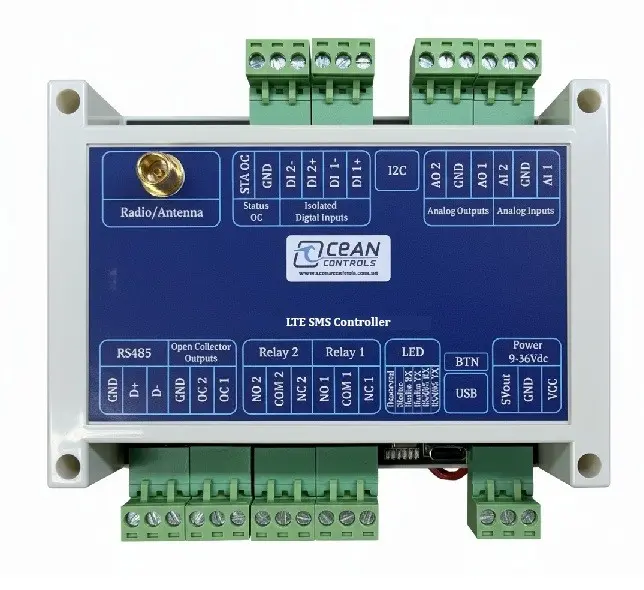

The KTA-397 is a LTE Controller which is easy to configure. It is fitted with 2 digit inputs and 2 relay outputs. SMS alarm messages can be sent to up to 10 phone numbers on change of state of a digital input. The command SMS messages to operate the digital outputs can be easy to remember such as "Pump ON" and "Pump OFF". It also supports multiple trigger conditions and actions, enabling users to create various combinations of commands according to their needs.
A magnetic base antenna with 1.5m cable is supplied with the KTA-397.
Specifications:
- Power Supply: 9 to 36VDC
- 2 x Digital Inputs: bi-directional, optically isolated, suit NPN, PNP, and dry contact sensors. 2.5V to 30V DC.
- 2 x Relays Outputs: rated at up to 3A at 30V DC
- 2x Open Collector Outputs: rated up to 300mA at 30VDC
- 2 x Analog Inputs: selectable between 0-10V, 0-20mA ranges, 12 bit resolution.
- 2 x Analog Outputs: selectable between 0-10V, 0-20mA ranges, 12 bit resolution.
- 1 x "Link OK" Open Collector Output: rated up to 300mA at 30VDC
- Operating Temperature: 0 to 70°C
- Dimensions: 145L x 90W x 40H (mm)
- Cellular Interface SIM: Micro SIM
- Cellular Interface Connector: 50 Ohm Female SMA
