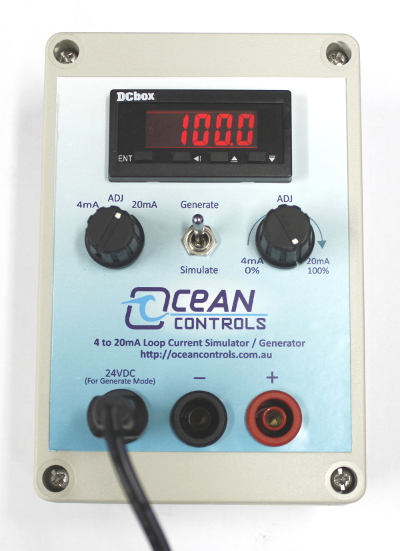

4-20mA Loop Current Simulator/ Generator with Backlit LCD Display
Buy 10, Get 5% Off!
Buy 100, Get 10% Off!
Description: The KTA-366 is a 4-20mA loop powered current calibrator suitable for testing 2 and 3 wire transducers. Contains a three position rotary switch, that selects between these operations:
- 4 mA – used to inject 4 mA into the loop.
- ADJ – used in conjunction with the potentiometer to select 4 mA, 20mA or any value in between.
- 20 mA – used to inject 20mA into the loop.
Two operating modes:
Simulate mode: Simulates 2-wire, loop-powered transducer. This mode uses an existing power supply or excitation connection on the PLC/DAQ equipment.
Generate mode: Generates a 4-20mA powered signal that can drive the input on a PLC/DAQ. In this mode, the KTA-366 is more like a 3-wire transducer or a signal conditioner. This mode requires power to be fed to the KTA-366 via its DC power jack. See alternative products below for a suitable plug pack.
- Suitable for 2 and 3 wire transducers
- Banana and DC Jack connections
- 40V Maximum Loop Voltage
- Sturdy Enclosure
- Backlit LCD Display (KTA-366)
- Display Scalable to Engineering Units
- 0 to 50 °C operating range
