Voltage To 4-20mA Converter 0-2.3V 0-30V

(0 review)

SKU : KTA-289A
Quantity on Hand : 0
Skill Level : Assembled and Tested

Buy 10, Get 5% Off!
Buy 100, Get 10% Off!


64.95 64.95 USD 64.95


Not Available For Sale

  • WeightMajor
  • WeightMinor

This combination does not exist.

Add to cart

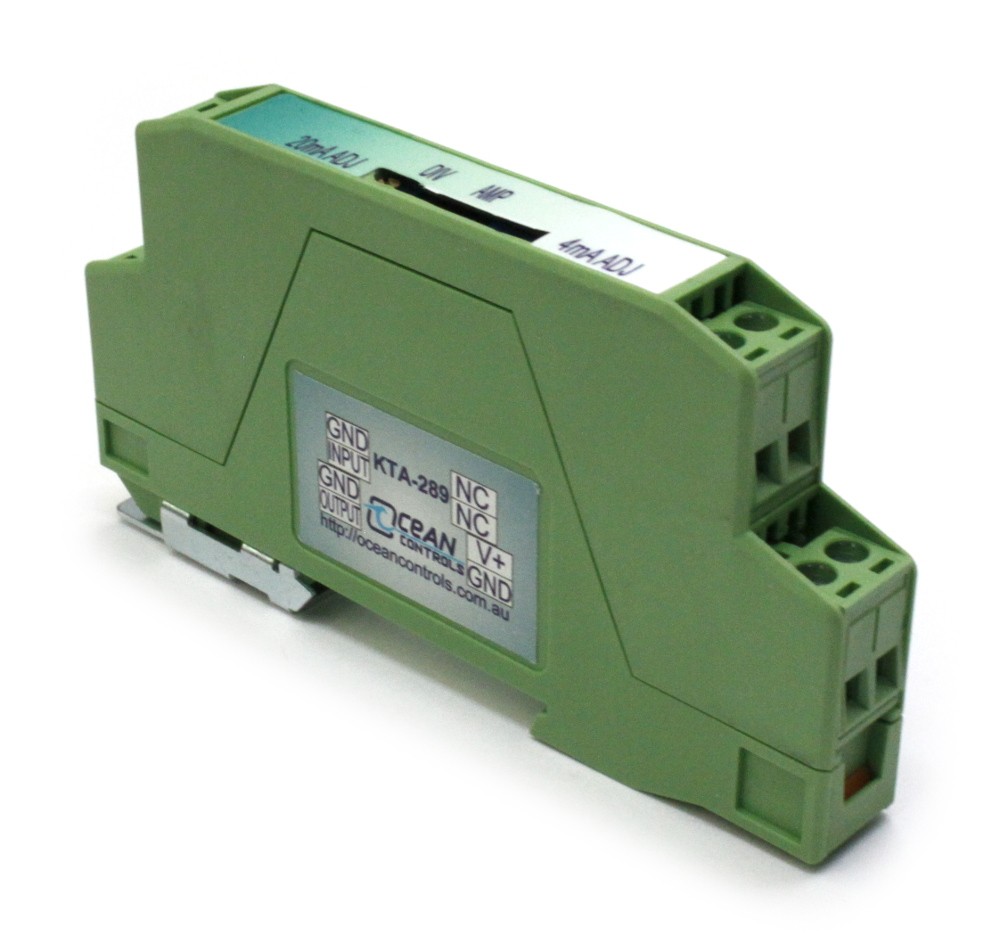

    Description: The KTA-289 is an easily configured non-isolated voltage signal to 4-20mA signal converter.

    It can convert voltage signal ranges from below 0 to 30V or 0 to 60V into a 4-20mA Output Signal.

    Configuration is carried out using the switch and two trimpots at the top. If the voltage signal is below 2.3V the switch is set to amplify. If the Voltage signal range is above 0-4.9V the switch is set to divide. The two trimpots are then adjusted for the 4mA and 20mA output as per the instructions in the manual.


    • Power Supply: 8-30VDC
    • Power Consumption: 20mA
    • Output: 4 to 20mA Output Signal
    • Input: Amplify Mode Input Range: from 0-0.1V up to 0-2.3V.
    • Divide Mode Input Range: from 0-4.9V up to 0-30V
    • Input Range is Adjustable to Divide or Amplify the Voltage Input Signal
    • Voltage Drop: 7.5V
    • Maximum Load: 200Ω @12VDC , 800Ω @24VDC
    • Operating Temperature: -40 to 85°C
    • Dimensions: 100L x 13W x 54H (mm)

    Documentation and Downloads
