Loop Powered Temperature Sensor

(0 review)

SKU : KTA-267
Quantity on Hand : 0
Skill Level : Assembled and Tested

Buy 10, Get 5% Off!
Buy 100, Get 10% Off!

44.95 44.95 USD 44.95

44.95

  • WeightMajor
  • WeightMinor

This combination does not exist.

Terms and Conditions

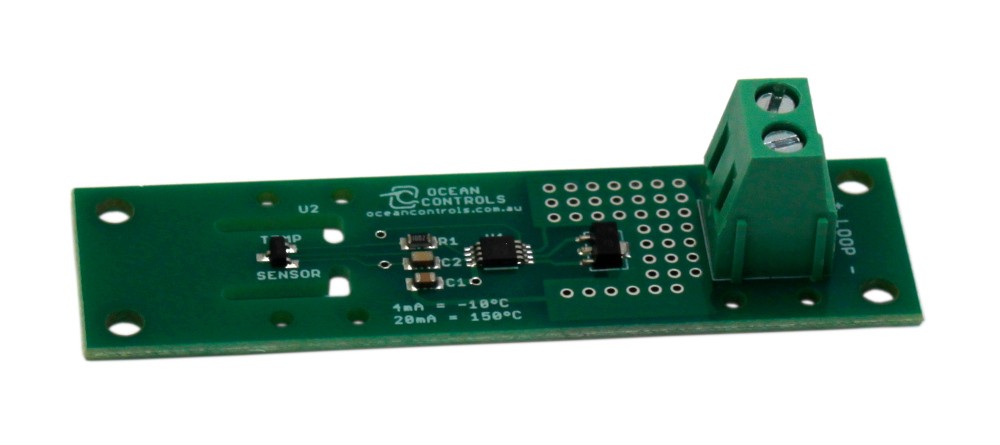

Description: This is a simple 4-20mA output loop powered temperature sensor with measurement range from -10°C to +125°C designed for monitoring RTU and PLC cabinet temperatures. DIN Rail mounting or Wall mounting is optional.

Available with a DIN Rail mounting. See the KTD-267 for that option.

Features:

  • Power Supply: Up to 40 V Loop Voltage, 8.1 V Compliance Voltage

  • Maximum Current: 20mA

  • Output: 4 to 20mA

  • Measurement Range: -10°C to 150°C

  • Ideal for measuring cabinet temperature for RTUs and PLCs

  • Operating Temperature: -10°C to 70°C

  • Typical Accuracy: ±0.5°C

  • Worst case Accuracy of ±2°C at 25°C

  • Worst case Accuracy of ±3°C at 150°C

  • Dimensions: 72L x 20W x 15H (mm)

Odoo • A picture with a caption
Typical Setup

Documentation and Downloads
