Arduino Thermocouple Multiplexer Shield (K - MAX31855K) No Headers

    49.95 49.95 49.95 USD


    This combination does not exist.

    Add to Cart

    SKU : KTA-259K
    Quantity on Hand : 11
    Skill Level : Assembled and Tested

    Buy 10, Get 5% Off!
    Buy 100, Get 10% Off!

    30-day money-back guarantee
    Free Shipping in the U.S. on Orders over $75
    We offer worldwide shipping as well
    Buy now and choose from several shipping methods

    Terms and Conditions

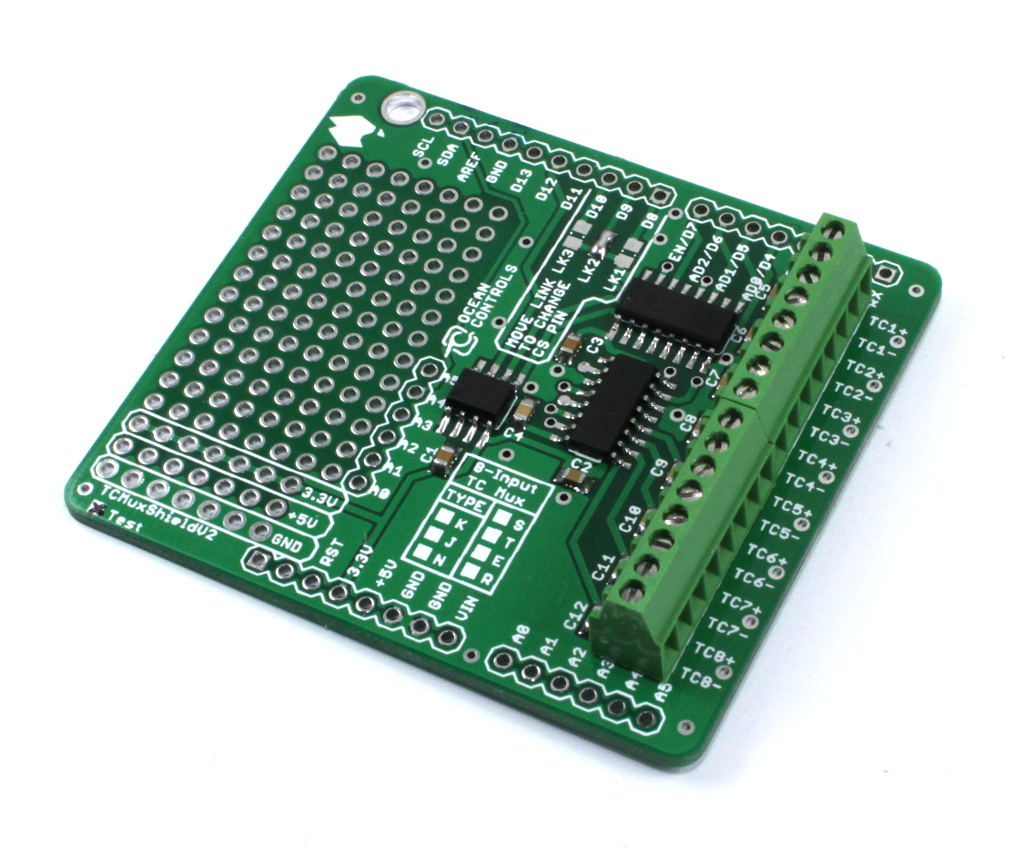

    Description: The KTA-259v5 Thermocouple Multiplexer Shield is designed to easily allow multiple high temperature readings with an Arduino control board. With the new version there are multiple advantages over the old KTA-259, namely, wider temperature range including below 0°C, higher accuracy, higher resolution and ability to use more thermocouple types (dependent on model).

    Screw terminals are provided for thermocouple connections as thermocouple wires can not be soldered.

    Note: The board ships as pictured, without Arduino headers. You can use standard brea-away headers, or the stackable headers. The board accepts both standard headers and R3 headers.

      • Automotive – Engine, Exhaust and Brake temperatures are higher than most temperature sensors can handle, but within the range of Thermocouples.
      • Ovens, Furnaces and Kilns – At temperatures where other temperature sensors will not operate.
      • Freezer or Cryogenic monitoring – Where temperatures are well below 0°C.
      • Chemical Processes – Where corrosive chemicals may damage probes or reach high temperatures thermocouples are more readily available for such processes.
      • Multi-Zone Temperature Monitoring, Data Acquisition or Logging Systems– With cheap readily available thermocouples.

      Additional Details:
      SKU / Part NumberThermocouple TypeICMeasured Temperature RangeThermocouple Maximum Temperature Range [1]
      KTA-259KKMAX31855K-200°C to +1350°C-270°C to +1372°C
      KTA-259JJMAX31855J-40°C to +750°C-210°C to +1200°C
      KTA-259NNMAX31855N-200°C to +1300°C-270°C to +1300°C
      KTA-259SSMAX31855S+50°C to +1600°C+50°C to +1768°C
      KTA-259TTMAX31855T-250°C to +400°C-270°C to +400°C
      KTA-259EEMAX31855E-40°C to +900°C-270°C to +1000°C
      KTA-259RRMAX31855R-50°C to +1770°C-50°C to +1768°C
      KTA-259[2]KMAX66750 to +1024°C-270°C to +1372°C
      KTB-259[2]KMAX66740 to +128°C-270°C to +1372°C

      [1] This is the range of temperatures that a thermocouple of this type can measure, the Measured Temperature Range is the actual range the KTA-259 can digitize.

       [2] KTA-259 and KTB-259 are discontinued and are included for reference only.


      • Add up to 8 Thermocouples to an Arduino

      • Cold Junction Compensated Output

      • K, J, N, S, T, E or R Type thermocouples supported dependent on model

      • 0.1” (2.54mm) Pitch Screw Terminals for Thermocouple connection

      • 14-bit 0.25°C Resolution

      • Nominal ±2°C accuracy[1]

      • Based on MAX31855 Cold-Junction Compensated Thermocouple-to-Digital Converter and ADG608 Multiplexer IC

      • 13 x 8 Prototyping Area with Analog and Power pins

      • Chip Select Pin Jumper Selectable means multi SPI shield compatibility

      • Combine with SD card shield for powerful Temperature Logging

      • Powered from 3.3V Arduino Pin, 5V compatible

      • Selection Guide:
