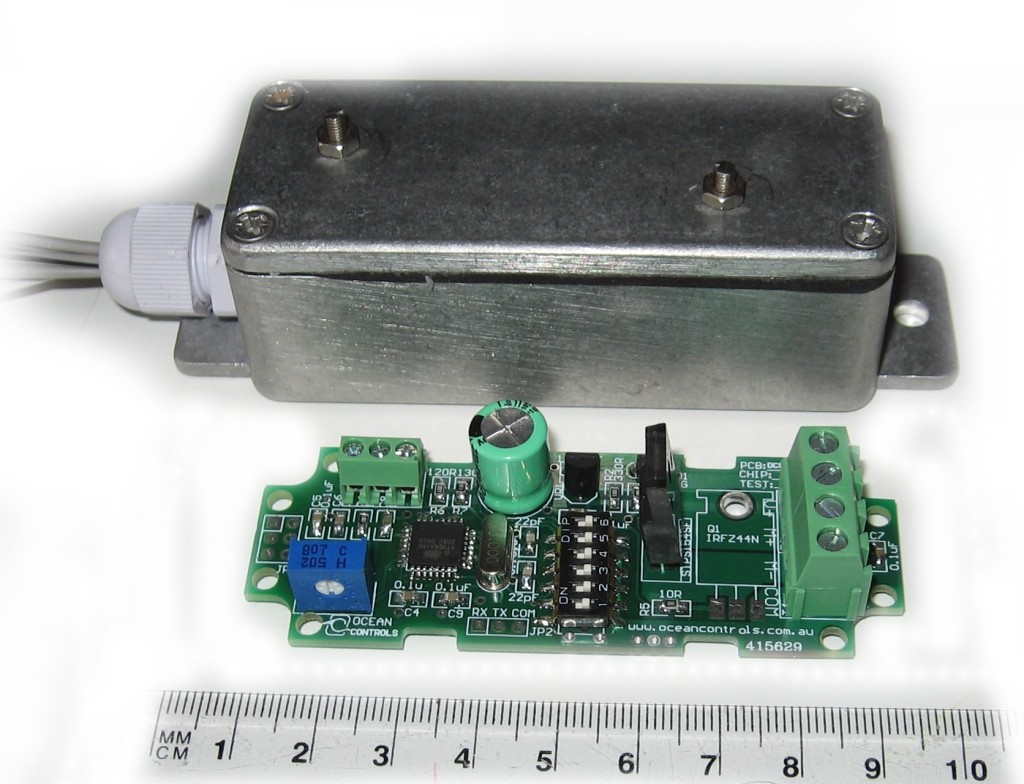

Unidirectional speed controller takes analog voltage (0 to 5 VDC) or current (0/4 to 20 mA) as its control signal. Suits 12 or 24 V motors up to 8 A continuous. Is a unidirectional controller, which will control the speed of any common brushed DC motor rated up to 35V and 8A without sacrificing motor torque. It operates on a supply voltage of 8 to 35 VDC, and takes analog voltage (0/1 to 5 VDC) or current (0/4 to 20 mA) as its control signal.
Uses a microcontroller to accurately pulse-width modulate a high current power MOSFET, IRFZ44.
Features:
- Power Supply: 8 to 35VDC
- Current Consumption: 8A (max)
- Output: 5V output for potentiometer
- Input: Potentiometer input, 0 to 5 V or 1-5V voltage, or 0-20mA or 4 to 20 mA current input signal control for easy connection to other control equipment
- Operating Temperature: -40 to 85°C
- Includes potentiometer which can easily be wired to the controller for setting speed manually.
- Adjustable acceleration time
- Die cast box with cable gland.
- Dimensions: 35 × 89 × 30 mm.
