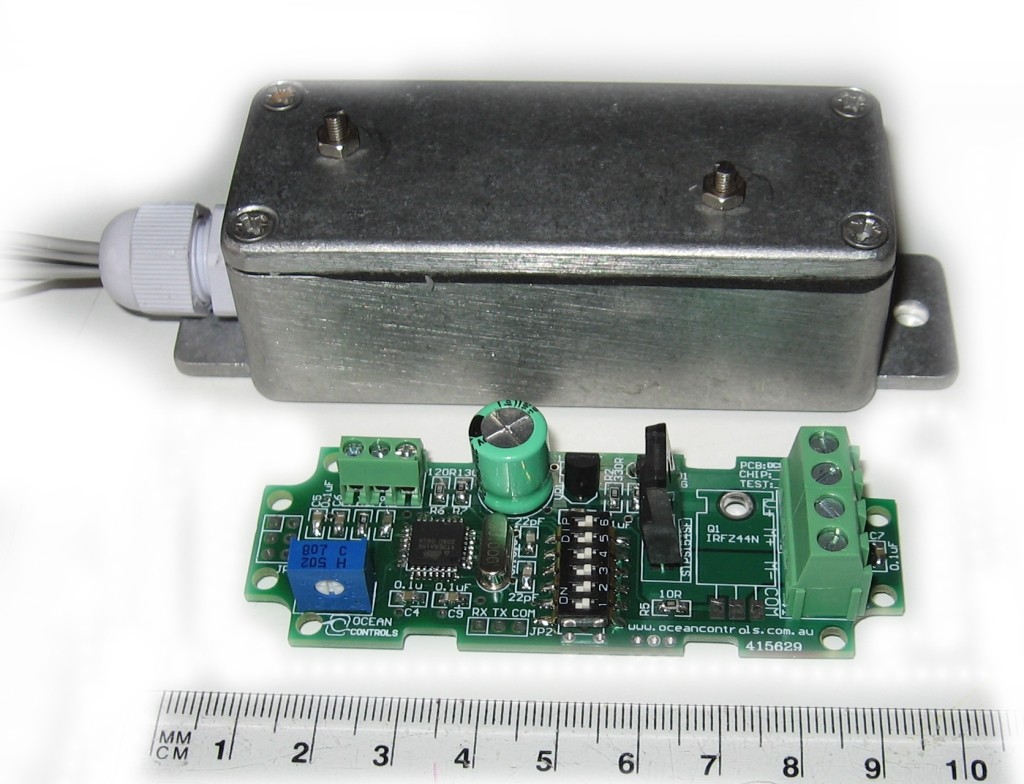

Description: Mini DC Motor Speed Controller in Box This unidirectional controller will control the speed of any common brushed DC motor rated up to 35V and 8A without sacrificing motor torque. Operates on a supply voltage of 8V to 35V. Uses a microcontroller to accurately pulse-width modulate a high current power MOSFET, IRFZ44.
Features:
Adjustable acceleration time
Potentiometer control
0-5V or 4-20mA input signal control.
Die Cast Box mounted.
Dimensions (mm): 35W x 89L x 30H.
Documentation and Downloads
