Parallel Port Interface card with Relays Outputs and Safety Charge Pump Option

https://electronics123.odoo.com/web/image/product.template/4823/image_1920?unique=7db78ea
(0 review)

SKU : KTA-205
Quantity on Hand : 1
Skill Level : Assembled and Tested

Buy 10, Get 5% Off!
Buy 100, Get 10% Off!

KTA-205

49.95 49.95 USD 49.95

49.95

Not Available For Sale

This combination does not exist.

Add to cart

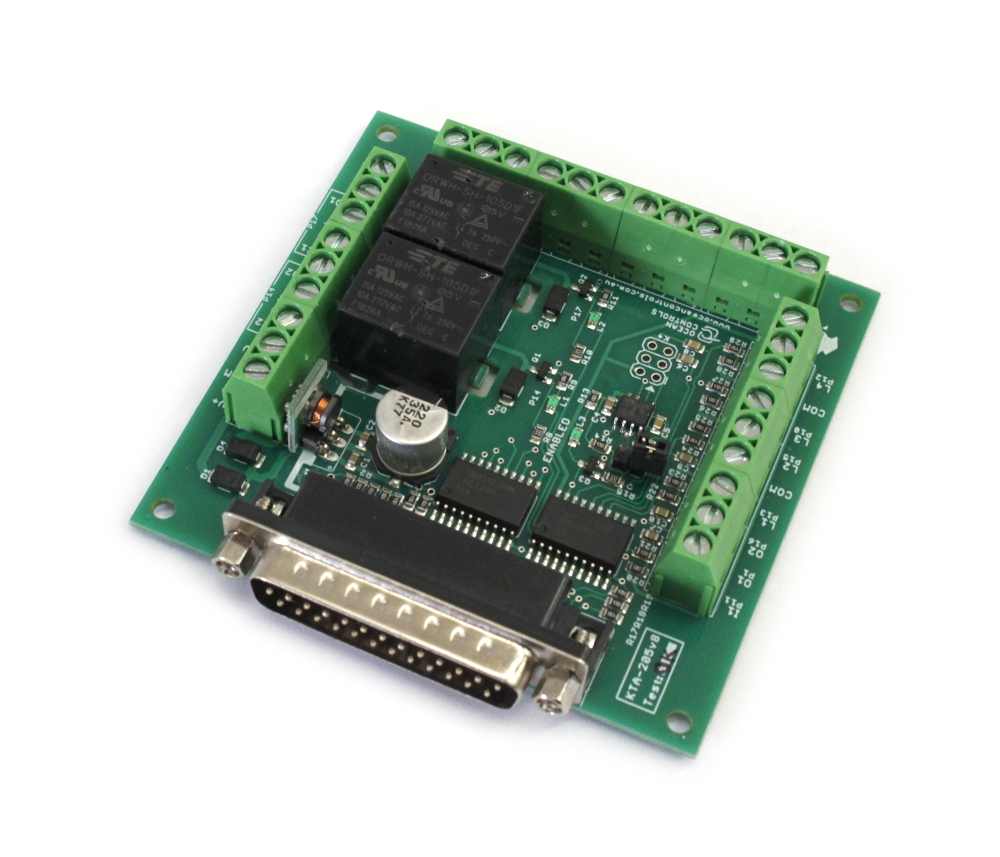

Description: The Ocean Controls Parallel Port Breakout Board for CNC is a parallel (printer) port hardware interface designed for providing Stepper Motor control signals, and incorporates 2 relays for switching devices on and off.

The main circuitry consists of two buffer IC's which boost the weak parallel port signals to a level high enough to drive Stepper Motor Driver Circuits which use Opto-Couplers.

With the safety charge pump option, the board also includes a microcontroller which monitors the CNC software and turns off the relays and output signals when the charge pump signal from the CNC software is lost.

The Breakout Board provides 9 buffered output signals to control up to 4 Stepper Motor Drivers, 5 digital inputs designed for use as limit switch or e-stop inputs, 2 Relay Outputs to control spindles, coolant or vacuums, and a spare output connected directly to the port (available only when the charge pump option is disable).


Specifications:

  • Power Supply: 12V to 24VDC
  • Current Consumption: <100mA
  • Output: a regulated 5VDC output is available
  • 3 Extra IO for further Expansion
  • 4 Axis CNC Breakout Board
  • Step, Direction and Limit Switch Connections for Each Axis
  • 2 Relays with indicator LED’s for Spindle, Coolant or Vacuum Control
  • Charge Pump Safety Option
  • Operating Temperature: -20 to 70°C
  • Dimensions: 85Wx88Lx25H (mm)
