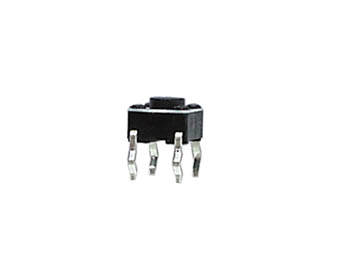

Tactile Switch 0.24" x 0.24" Height: 0.20"

https://electronics123.odoo.com/web/image/product.template/4816/image_1920?unique=2e13138
(0 review)

SKU : KRS0612
Quantity on Hand : 41
Skill Level : Component or Part
ROHS Compliant

Buy 10, Get 5% Off!
Buy 100, Get 10% Off!

KRS0612

0.25 0.25 USD 0.25

0.25

Not Available For Sale

    This combination does not exist.

    ADD TO CART


    Features:

    • Applications:

      • for all types of electronic equipment such as telephones, audio instruments, TV sets, VCRs, ...

      • micro-miniature, lightweight

    • Snap-in type: suitable for direct PCB mounting

    Specifications:

    • Dimensions: 0.24" x 0.24"

    • Height: 0.20"

    • Rating: 12V DC - 50mA

    • Insulation resistance: > 100Mohm - 250V DC

    • Withstand voltage: 100V AC 1 minute

    • Contact resistance:

    • Soldering temperature: 255°C for max. 5 seconds

    • Mechanical life: 500000 cycles

    • Electrical life: 300000 cycles

    • Ambient temperature range: -13°F to 158°F

    • Ambient humidity range:

    • Operating force: 130 to 160 ± 30gf

    Documentation and Downloads
