for all types of electronic equipment such as telephones, audio instruments, TV sets, VCRs, etc.

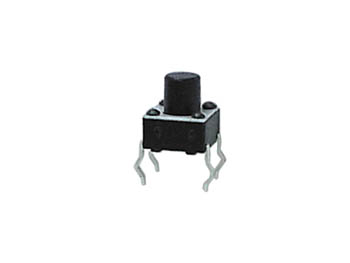

Snap-in type: suitable for direct PCB mounting
- Dimensions: 0.24" x 0.24"
- Height: 0.28"
- Rating: 12V DC - 50mA
- Insulation resistance: > 100Mohm - 250V DC
- Withstand voltage: 100V AC 1 minute
- Contact resistance: < 100mohm
- Soldering temperature: 255°C for max. 5 seconds
- Mechanical life: 500000 cycles
- Electrical life: 300000 cycles
- Ambient temperature range: -13°F to 158°F
- Ambient humidity range: < 85% RH
- Operating force: 130 to 160 ± 30gf
