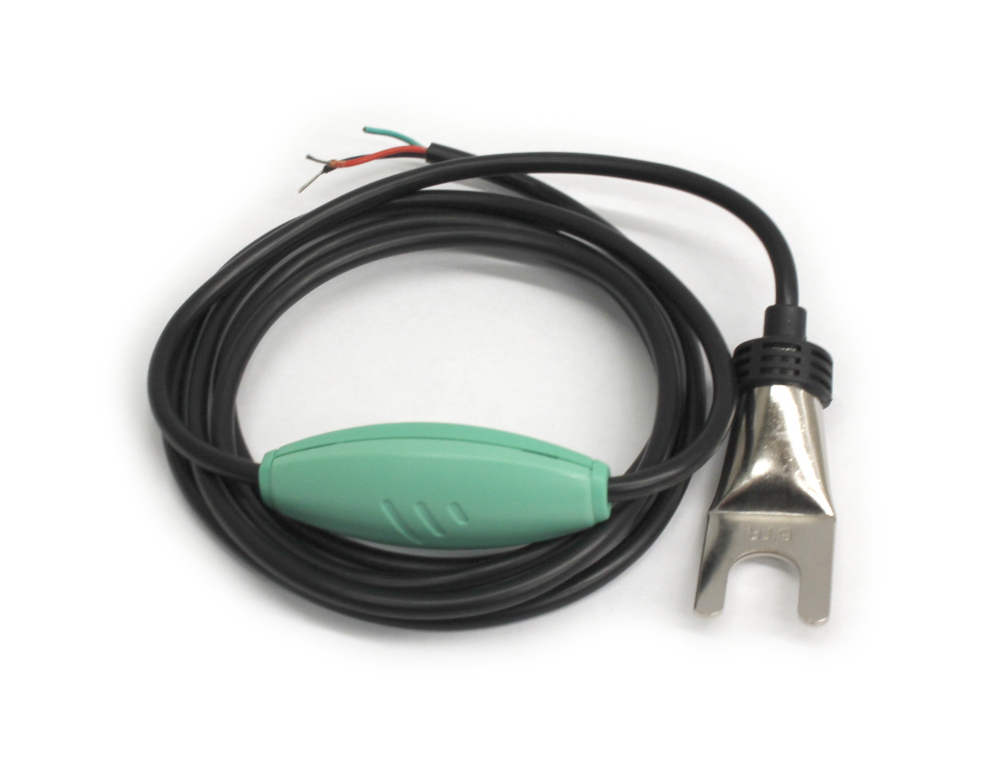

Description: This is a simple 4-20mA output loop powered temperature sensor with measurement range from 0°C to +100°C designed for monitoring battery, heatsink and surface temperatures.
It is an industrial grade, high reliability, low-power consumption, high stability and high precision analog transducer.
The TMI300 is used widely as a temperature measure of Base Transceiver Stations, diesel generator rooms, engine rooms, transformer substations, telecommunication equipment rooms, warehouse and so on.
The TMI300 features a quick response to temperature and the U type connector makes it easy to install in the fields.
Power Supply 12 to 28 VDC
4 to 20 mA output
0 to 100 °C Measurement Range
+/-1% at 25 ℃;
Relative Humidity: 10 to 95% RH
Net Weight: 120 g.
Cable Length: 120 cm
Easily attached to surface by 8 to 10 mm bolt
