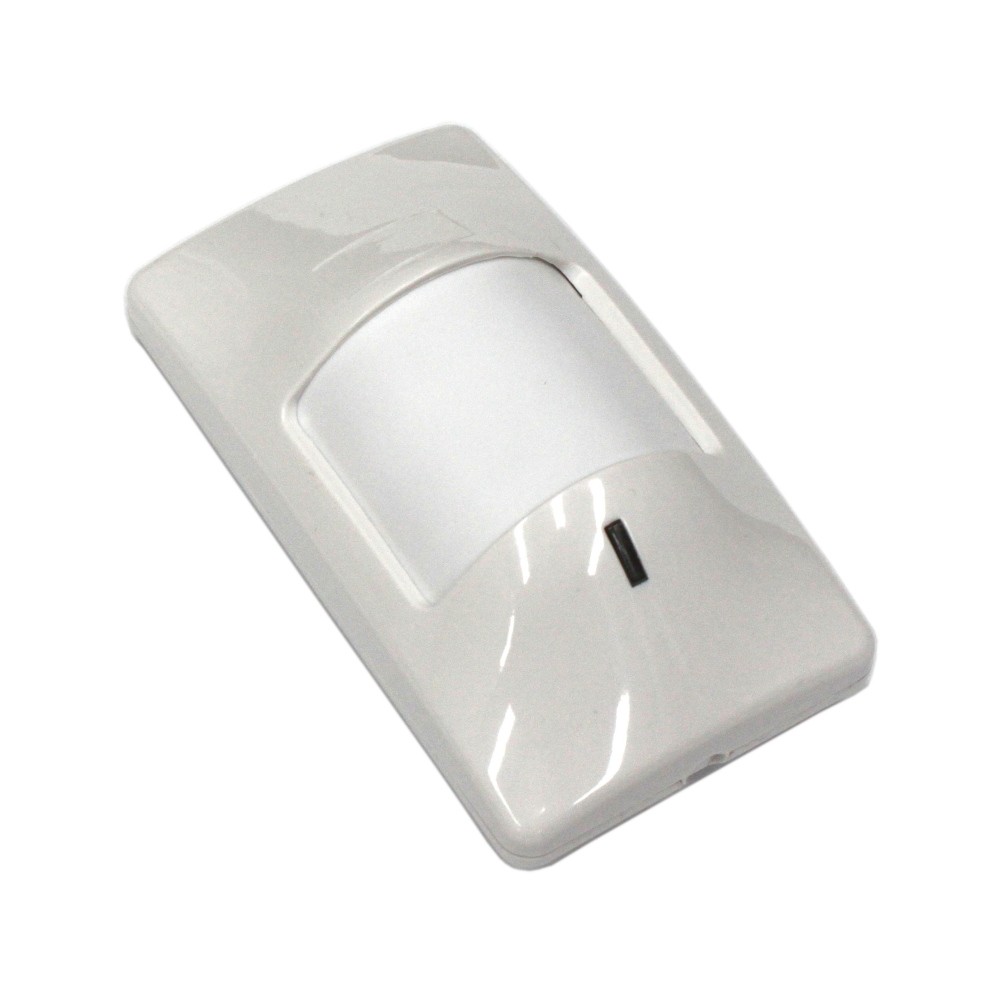

Wired Pet Immunity PIR Motion Sensor

https://electronics123.odoo.com/web/image/product.template/10058/image_1920?unique=e373b06
(0 review)

SKU : KPR-105
Quantity on Hand : 3
Skill Level : Assembled and Tested

Buy 10, Get 5% Off!
Buy 100, Get 10% Off!

KPR-105

21.38 21.38 USD 21.38

21.38

Not Available For Sale

  • WeightMajor
  • WeightMinor

This combination does not exist.

Add to cart

Description: The PIR-04 wired PIR motion detector is designed to provide detection of criminal intrusion through doors and windows into a protected area by sensing the infrared energy (heat) emitting from an intruder’s body moving through the protected area. The MOTION SENSOR is commonly referred to as a PIR, which stands for passive Infrared. Upon detection of intrusion, the PIR-100B automatically generates an alarm signal to control panel. The sensor also provides a tamper contact output. The unit is can be wall-mounted by means of a bracket. A special PET IMMUNE MOTION SENSOR is utilised to know the difference between an intruder and a pet.

Features:

  • Newly-developed dual element passive infrared sensor unit;
  • Wired transmitting digital signal to control panel;
  • Intelligent logic control eliminates false alarms;
  • Microcontroller temperature analysis and Automatic temperature compensation for best summertime detection;
  • Tightly-mated bug guard to protect the sensor optics from insects, spiders and dust;
  • High immunity to white light;
  • Selectable detection sensitivity (standard/high) for different environmental requirements;
  • SMT adopted, RF and EMI Immunity;
  • Adjustable detecting distance;
  • Alarm output contacts of relay: N.C./ N.O. optional.

Specifications:

  • Operating Voltage: DC9V~16V
  • Detection Range: Vertical angle 60degree, Horizontal angle 110 degree, 12m
  • Standby Current: NC<15mA ; NO<6mA
  • Alarm Current: NC<100mA ; NO<30mA
  • RF Immunity:> 25 V/m 10-1000 MHz
  • Sensitivity: > 3300V/W
  • White Light Immunity: > 8000 lux
  • Noise(Vp-p): <200mV, (mVp-p)(25°C)
  • Alarm Output: NC or NO
  • Temperature Range: -10°C to +50°C
  • Relative Humidity: 90% (25 degC )
  • Installation Mode: Wall mounted by bracket
  • Installation Height: 2m
  • Housing: High-impact ABS
  • Dimensions: 107x59.5x39.5mm (HxWxD)
