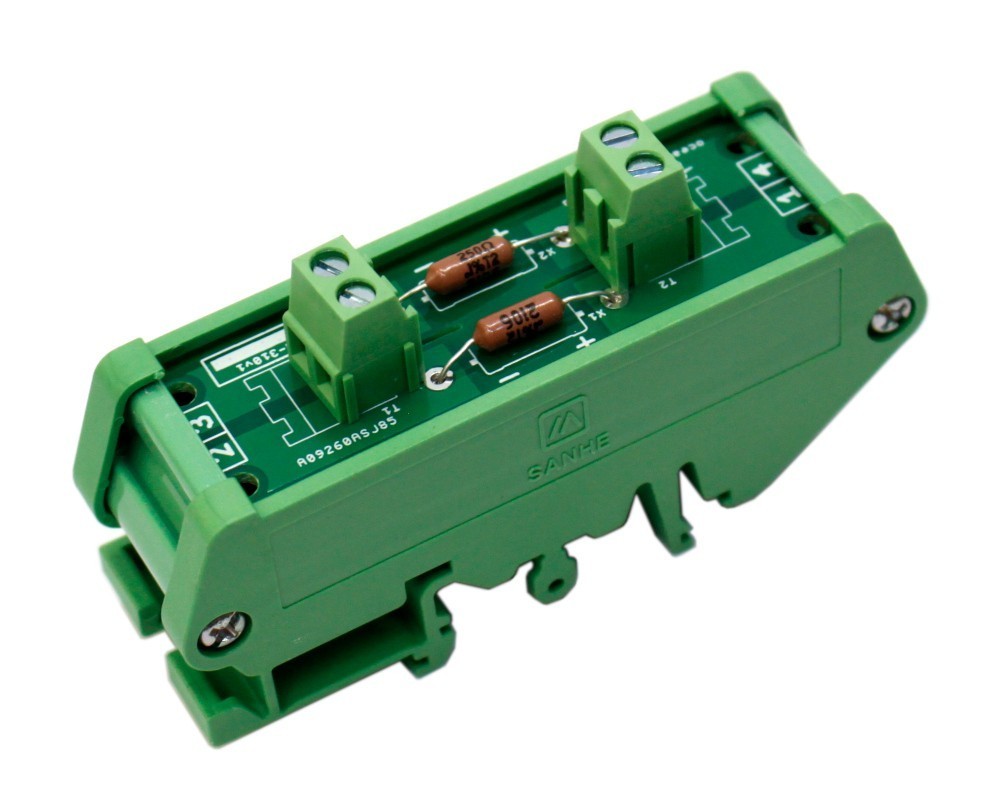

Dual 250 Ohm, 0.1%, 1W resistors, suitable for converting 4 to 20 mA loops to 1 to 5V.
Typical uses:
Current to voltage conversion: 4 to 20mA to 1 to 5V
Strong pullup or pulldown resistors for use with NPN, PNP, or dry contact outputs
Current limiting resistors for driving lighting, opto inputs, or suppression/protection
Voltage divider for battery, solar cell voltage monitoring
Supplied with DIN rail mounting.
Features:
Accuracy: 0.1%
Dimensions: 90L x 22W x 47H (mm)
Power Dissipation: 1 Watt
