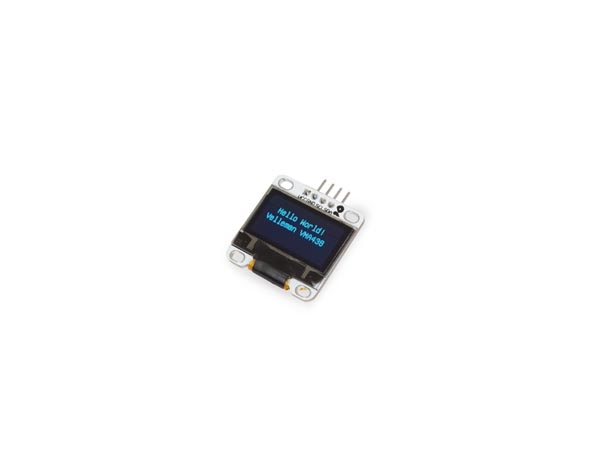

This 0.96 inch OLED screen connects over I2C. OLED displays have several advantages: low power consumption, bright, sharp images with high contrast, a large viewing angle for better readability and high resolution.
The display uses the SSD1306 driver and works with the U8glib library. It runs on 3 - 5 V and accepts both 3.3 V and 5 V I/O levels.
- Size: 0.96 inch
- Resolution: 128 x 64 dots
- Interface: I2C
- Driver: SSD1306
- OLED color: blue
- Viewing angle: more than 160°
- Working voltage: 3 - 5 V (I/O level 3.3 V and 5 V)
- Recommended library: U8glib
- Working temperature: -30°C to 70°C
- Dimensions: 27 x 27 mm
