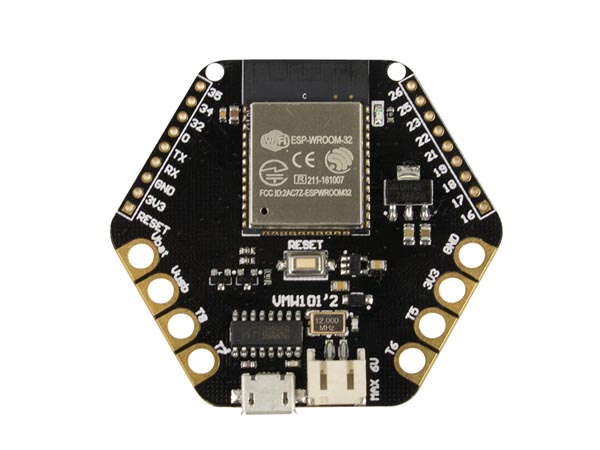

This ESP32-based wearable development board is 100% Arduino compatible and easy to wear thanks to its ultra-thin PCB with 8 sewable pads, 4 of which are capacitive touch-enabled. The PCB has no sharp edges and measures 56 x 50 x 7.5 mm.
On board you get WiFi and Bluetooth, a hall effect sensor, a temperature sensor and an ultra-low power analog pre-amplifier. A JST connector and integrated LiPo charger make battery power easy, and deep sleep mode keeps consumption to a minimum when the board is idle. With its 240 MHz clock, the board is at least 10 times faster than an Arduino Uno. It is compatible with all BrightDot wearable LED boards.
- Based on the ESP32, with on-board WiFi and Bluetooth
- 8 sewable pads: 4 regular power pads and 4 capacitive touch-enabled pads
- 1 on-board orange LED and a dedicated reset button
- Hall effect sensor, temperature sensor and ultra-low power analog pre-amplifier
- Integrated LiPo battery charger with JST connector
- 2 x 8-bit DACs and 12-bit SAR ADC
- SPI, I2S, I2C and UART interfaces; LED PWM, UART, I2C, I2S and SPI functions can be assigned to any GPIO
- LED PWM (up to 16 channels)
- General purpose IO: 17
- CPU: Xtensa dual-core (or single-core) 32-bit LX6, 160 or 240 MHz, up to 600 DMIPS, plus ultra low power (ULP) co-processor
- Memory: 520 KB SRAM, 448 KB ROM
- WiFi 802.11 b/g/n; Bluetooth v4.2 BR/EDR and BLE
- Max current consumption: 300 mA; deep sleep: 10 µA
- Max battery input voltage: 6 V; max battery charge current: 450 mA
- Dimensions: 56 x 50 x 7.5 mm
