SparkFun Inventor's Kit Bridge Pack - v4.1
(0 review)

SKU : KIT-15476
Quantity on Hand : 1
Skill Level : Kit - No Soldering Required

Buy 10, Get 5% Off!
Buy 100, Get 10% Off!


28.95 28.95 USD 28.95


Not Available For Sale

    This combination does not exist.


    Description: Own the fourth iteration of our popular SparkFun Inventor's Kit and not ready to buy version 4.1? You are in luck! The SparkFun Inventor's Kit Bridge Pack was designed to provide you with an easy way to move into the next SIK edition without buying a whole new kit. Each Bridge Pack includes all of the new parts found in the SIK v4.1 that aren't in V4.0, as well as the most up-to-date, spiral-bound guidebook so you can get started right away!

    v4.0 => v4.1

    RedBoard (w/ FTDI, mini-B) => RedBoard Qwiic (w/ CH340 micro-B connector, Qwiic connector w/ logic level conversion)

    USB mini-B cable => USB micro-B cable

    Red Ultrasonic Sensor => Blue Ultrasonic Sensor w/ crystal - increased reliability

    The SIK V4.1 includes the Redboard Qwiic which allows you to expand into the SparkFun Qwiic ecosystem after you have become proficient with the SIK circuits. The SparkFun Qwiic Connect System is an ecosystem of I2C sensors, actuators, shields and cables that make prototyping faster and less prone to error. All Qwiic-enabled boards use a common 1mm pitch, 4-pin JST connector. This reduces the amount of required PCB space, and polarized connections mean you can’t hook it up wrong. Please be aware that with the new Redboard Qwiic addition to the SIK that you will need to install new drivers for the CH340 USB-to-Serial Converter.

    Note: The Bridge Pack is NOT a full SparkFun Inventor's Kit and only includes the parts to complement an older version of the SIK to make it compatible with the version 4.0 projects.

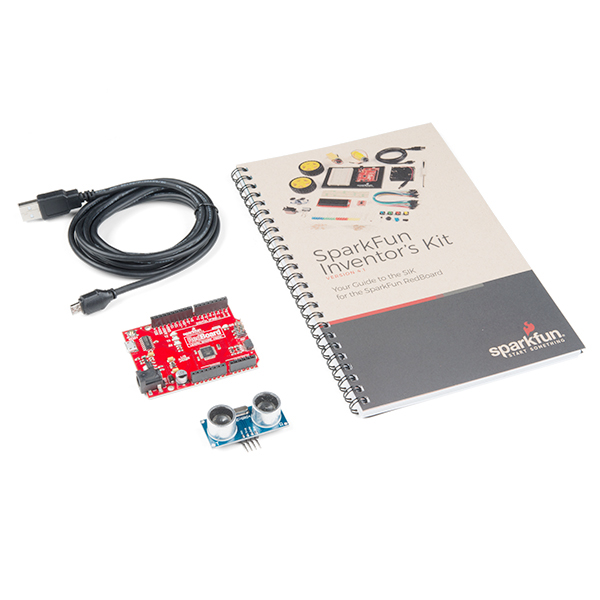

    Features: 1x SparkFun RedBoard Qwiic

    1x Ultrasonic Distance Sensor - Blue HC-SR04

    1x SparkFun Inventor's Kit Guidebook v4.1

    1x USB micro-B Cable - 6 Foot

    Combining this Bridge Pack with an older SIK will allow you to create the following projects:

    Project 1: Light

    Circuit 1A: Blinking an LED

    Circuit 1B: Potentiometer

    Circuit 1C: Photoresistor

    Circuit 1D: RGB Night-Light

    Project 2: Sound

    Circuit 2A: Buzzer

    Circuit 2B: Digital Trumpet

    Circuit 2C: "Simon Says" Game

    Project 3: Motion

    Circuit 3A: Servo Motors

    Circuit 3B: Distance Sensor

    Circuit 3C: Motion Alarm

    Project 4: Display

    Circuit 4A: LCD "Hello, World!"

    Circuit 4B: Temperature Sensor

    Circuit 4C: "DIY Who Am I?" Game

    Project 5: Robot

    Circuit 5A: Motor Basics

    Circuit 5B: Remote-Controlled Robot

    Circuit 5C: Autonomous Robot
