SparkFun WeevilEye - Beginner Soldering Kit

https://electronics123.odoo.com/web/image/product.template/9024/image_1920?unique=001915b
(0 review)

SKU : KIT-10723
Quantity on Hand : 5
Skill Level : Kit - Basic Soldering Required
ROHS Compliant

Buy 10, Get 5% Off!
Buy 100, Get 10% Off!

KIT-10723

11.95 11.950000000000001 USD 11.95

11.95

Not Available For Sale

  • WeightMajor
  • WeightMinor

This combination does not exist.

Add to cart

Share

Description: Have you ever seen a Weevil? It’s a pretty under-appreciated beetle, so we thought it deserved a kit. Okay, so we just kind of like the name and think it makes a cute board.

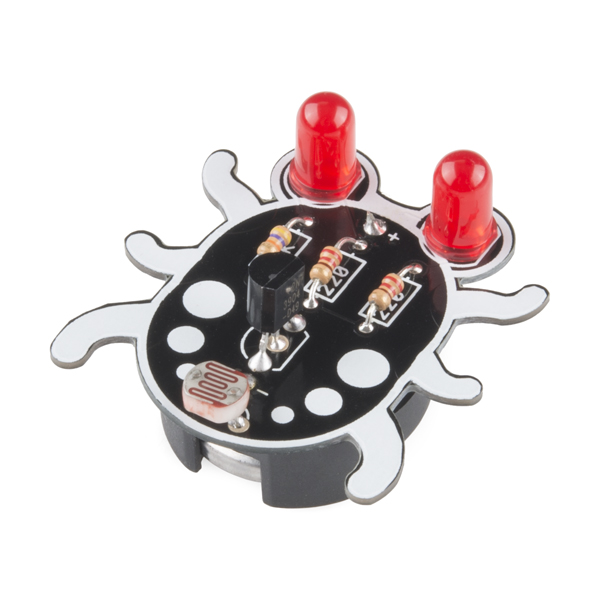

The WeevilEye is a through-hole soldering kit designed for the beginner. It has a low parts count so even young kids can easily complete it. Once it’s put together the red LED “eyes” light up brighter or darker according to how much light is getting to the photosensor.

This kit comes with all of the parts you need to build your own WeevilEye as well as an instructional kit card that will guide you through the assembly process. You will need a soldering iron and some solder, an inexpensive choice for the beginner is the 30W Soldering Iron listed below.

Note: Due to the requirements of shipping the battery in this kit, orders may take longer to process and therefore do not qualify for same-day shipping. Additionally, these batteries can not be shipped via Ground or Economy methods to Alaska or Hawaii. Sorry for any inconvenience this may cause.

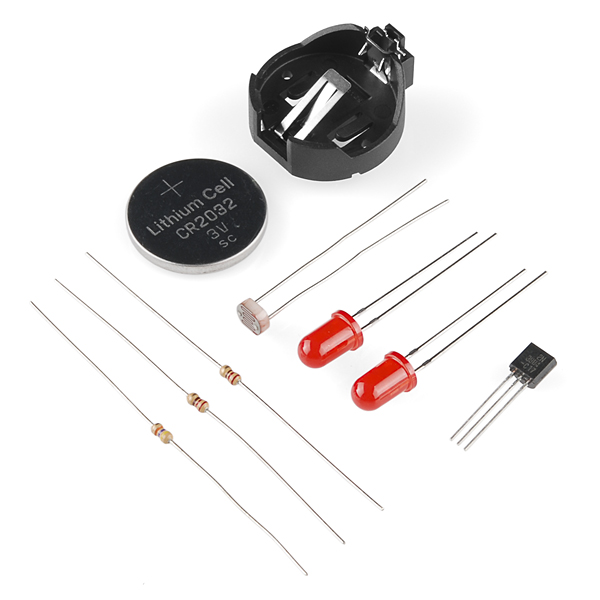

Kit Includes:

  • 1 x WeevilEye PCB
  • 2 x Red LEDs
  • 1 x 47k Ohm Resistor
  • 1 x Miniature Photocell
  • 1 x 20mm Coin Cell Battery Holder
  • 1 x 20mm Coin Cell Battery
  • 1 x 2N3904 Transistor
  • 2 x 220 Ohm Resistors
