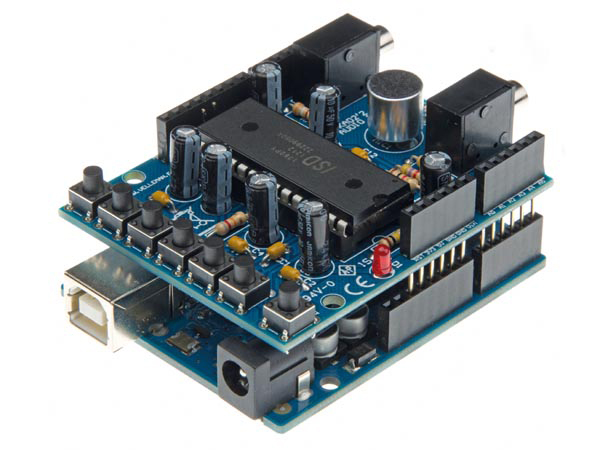

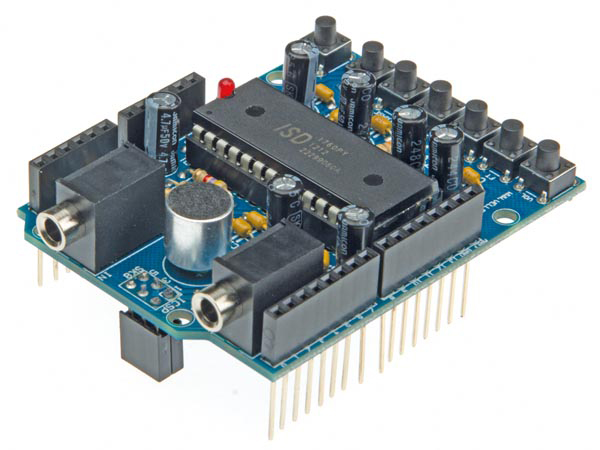

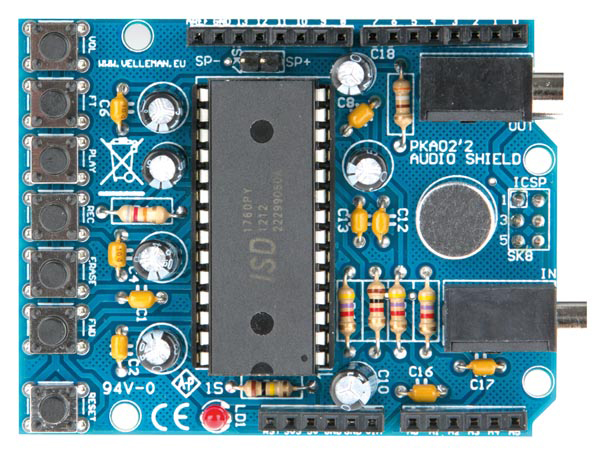

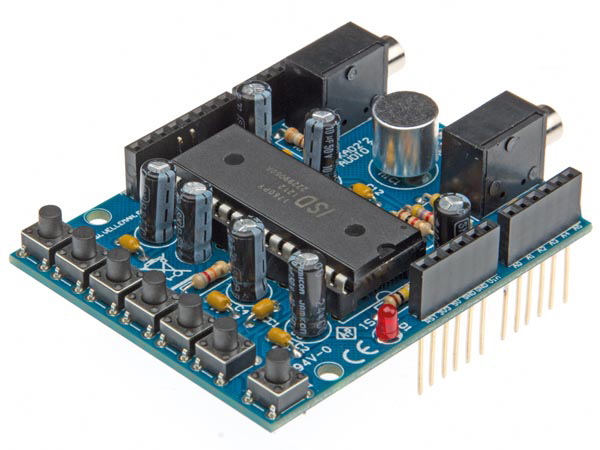

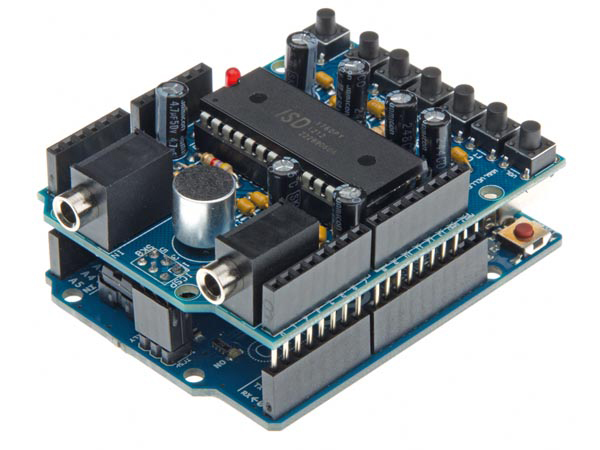

Audio Shield for Arduino

https://electronics123.odoo.com/web/image/product.template/4628/image_1920?unique=2868ad9
(0 review)

SKU : KA02
Quantity on Hand : 3
Skill Level : Assembled and Tested
ROHS Compliant

Buy 10, Get 5% Off!
Buy 100, Get 10% Off!

KA02

19.95 19.95 USD 19.95

19.95

Not Available For Sale

  • WeightMajor
  • WeightMinor

This combination does not exist.

Add to cart


Description: Record your voice via a built-in microphone or a line input.

Features:

  • 60 second recording time
  • start playback, record via on-board buttons or via Arduino UNO
  • playback via a speaker or a line output
  • downloadable sample sketch and library
  • stackable design: the shield can be stacked with other shields
  • large user community
  • requires 1 Arduino UNO (not included)
Specifications:
  • audio sample frequency: 8 kHz
  • uses pin 10 on an Arduino UNO board as a Chip Select
  • uses the ICSP pins on an Arduino as a serial connection to the shield to free up I/O pins
  • memory write up to 100.000 X

Dimensions: 71 x 53mm / 2.79 x 2.08"
