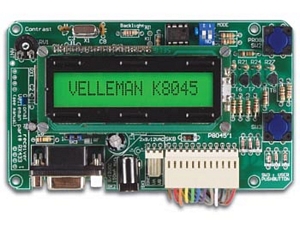

8 Input Programmable Messageboard with LCD & Serial Interface (Kit)

https://electronics123.odoo.com/web/image/product.template/4589/image_1920?unique=fcbbbc9
(0 review)

SKU : K8045
Quantity on Hand : 1
Skill Level : Kit - Complex Soldering Required
ROHS Compliant

Buy 10, Get 5% Off!
Buy 100, Get 10% Off!

K8045

45.39 45.39 USD 45.39

45.39

Not Available For Sale

This combination does not exist.

Add to cart


Features:

  • Add an LCD display to any low-tech application and make it look high-tech !

  • Replace up to 9 indicators or lamps by one single backlit LCD

  • Recall messages simply by pressing a button

  • Inputs accept dry contacts, open collectors and logic levels

  • No programming skills required !

  • Store up to 9 sixteen-character messages in non-volatile EEPROM memory

  • 4 Operating Modes:

    • 1) Display the status of all inputs simultaneously

    • 2) Display all active inputs

    • 3) Display active input with highest priority

    • 4) Display text messages in a 'tickertape'-fashion

  • A default message can be entered which is displayed when no inputs are active

  • Messages can be transferred to the K8045 from any PC or terminal

  • Message transfer software is available from www.velleman.be

  • Wireless data transfer between PC/terminal and K8045 is possible with optional RX/TX433 modules

  • 1 On-board pushbutton available for your application

Specifications:

  • Inputs: 8 inputs (24Vmax)

  • Display: 16 character 1 line supertwist backlit LCD

  • Communication: RS232 serial 2400/N/8/1 no handshaking

  • Power supply: 9-12V DC / 150mA adapter or 2 x 9V AC / 150mA transformer

  • Dimensions: 4.9" x 2.9" x 1.2"
