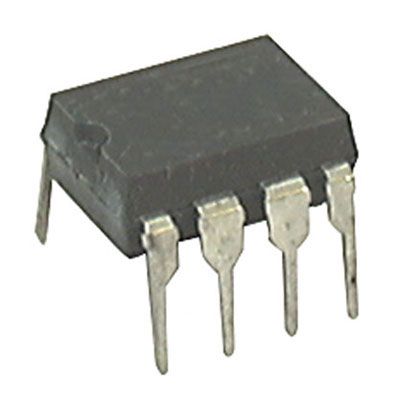

LM386N-1 Low Voltage Audio Power Amplifier DIP-8

(0 review)

SKU : JO24125
Quantity on Hand : 16
Skill Level : Component or Part

Buy 10, Get 5% Off!
Buy 100, Get 10% Off!


1.89 1.8900000000000001 USD 1.89


  • WeightMajor
  • WeightMinor

This combination does not exist.



                  • Family: LM386

                  • Minimum Single Supply Voltage : 4V
                  • Typical Single Supply Voltage: 5V/9V
                  • Maximum Single Supply Voltage: 12V
                  • Maximum Operating Temperature: 70°C
                  • Amplifier Type: Cla Featuresss-AB
                  • Output Type: 1-Channel Mono
                  • Maximum Load Resistance: 32 Ohm
                  • Supplier_Package : MDIP
                  • Maximum Quiescent Current: [email protected]
                  • Product Length: 9.27mm
                  • Total Harmonic Distortion Noise : 0.2%@8 Ohm @125mW
                  • Maximum Input Bias Current: 0.25uA(Typ)@6V
                  • Typical Output Power x Channels @ Load: [email protected]
                  • Typical PSRR: 50dB
                  • Typical Quiescent Current: [email protected]
                  • Maximum Power Dissipation: 1250mW
                  • Rail to Rail: No
                  • Minimum Operating Temperature: 0°C
                  • Function: Speaker
                  • Mounting Through Hole
                  • Pin Count: 8
                  • Product Width: 6.35mm
                  • Product Height: 3.3mm
                  • Power Supply Type: Single
                  • Product Type: Audio Amplifier
                  • Typical Voltage Gain: 46dB
                  • Input Signal Type: Single
                  • Output Signal Type: Single

                  Supplier PackageMDIP
                  Amplifier TypeClass-AB
                  Input Signal TypeSingle
                  Output Type1-Channel Mono
                  Power Supply TypeSingle
                  Minimum Single Supply Voltage4V
                  Output Signal TypeSingle
                  Typical Single Supply Voltage5V|9V
                  Maximum Single Supply Voltage12V
                  Maximum Input Bias Current0.25uA(Typ)@6V
                  Maximum Load Resistance32Ohm
                  Maximum Power Dissipation1250mW
                  Maximum Quiescent Current[email protected]
                  Typical Output Power x Channels @ Load[email protected]
                  Typical PSRR50dB
                  Typical Quiescent Current[email protected]
                  Rail to RailNo
                  Total Harmonic Distortion Noise0.2%@[email protected]
                  Minimum Operating Temperature0°C
                  Maximum Operating Temperature70°C
                  MountingThrough Hole
                  Product Height3.3mm
                  Product TypeAudio Amplifier
                  Product Width6.35mm
                  Product Length9.27mm
                  Typical Voltage Gain46dB
