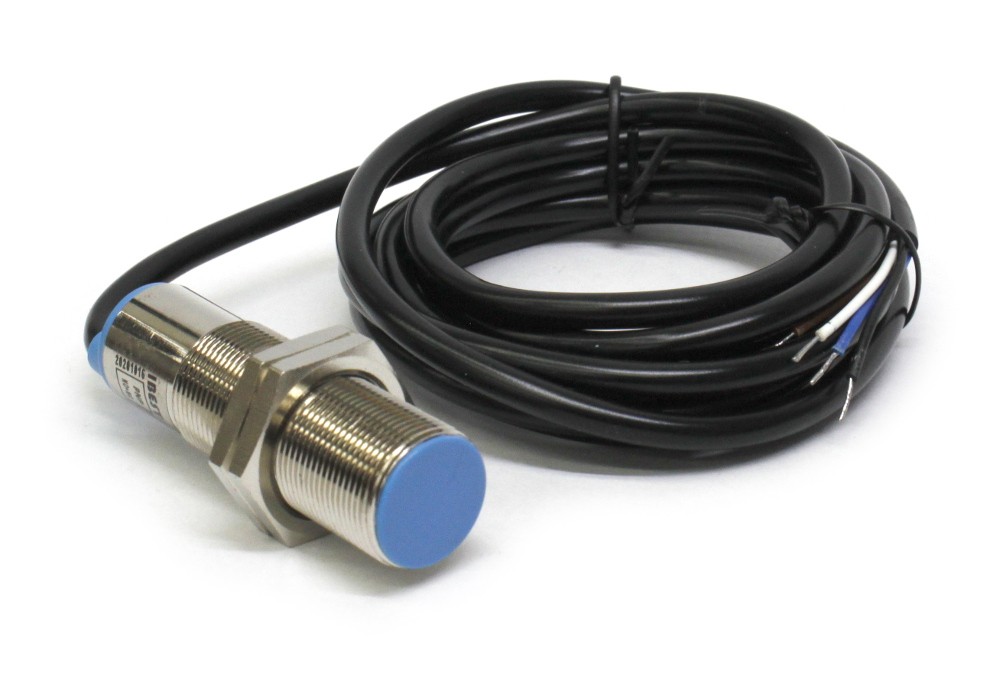

M18 Proximity Sensor Inductive IPS-18POC5B PNP 4 wire Shielded

https://electronics123.odoo.com/web/image/product.template/4317/image_1920?unique=e4f6bbc
(0 review)

SKU : IBS-0182
Quantity on Hand : 1
Skill Level : Assembled and Tested

Buy 10, Get 5% Off!
Buy 100, Get 10% Off!

IBS-0182

24.95 24.95 USD 24.95

24.95

Not Available For Sale

  • WeightMajor
  • WeightMinor

This combination does not exist.

Add to cart

CLOSEOUT ITEM. NEW LOW PRICE! LIMITED QUANTITY AVAILABLE.

Description: The shielded M18 inductive sensor has a sensing distance of ~5 mm. This sensor has PNP-style, NO+NC contact type output. Widely applied in measuring, Counting, Rpm measuring in mechanism, chemical, paper manufacture light industry, etc.


Specifications:

  • Rated operational voltage(DC/AC): 24VDC
  • Supply voltage(DC/AC): 10-30VDC
  • Voltage drop:
  • Rated insulation voltage: >=20MΩ
  • Load current capacity(DC/AC): 200mA
  • Off-state current(NPN/PNP):
  • Leak current:
  • Protection against polarity reversal: YES
  • Short circuit protected: YES
  • Load capacity:
  • Repeated accuracy:
  • Ambient temperature range: -25...+70degC
  • Frequency(DC 3/2 wires/AC 2 wires): 800Hz/400Hz
  • Function indication: Red LED Indicator
  • IP ratings: IP67
  • Housing material: Nickle plated brass
  • Material of sensing face: ABS
  • Connection: Connector
  • No. of wires x gauge: 12 x 0.16mm
  • Standard lenth of cable: 2m
  • Detection distance:4.5mm
  • Approvals: CE
