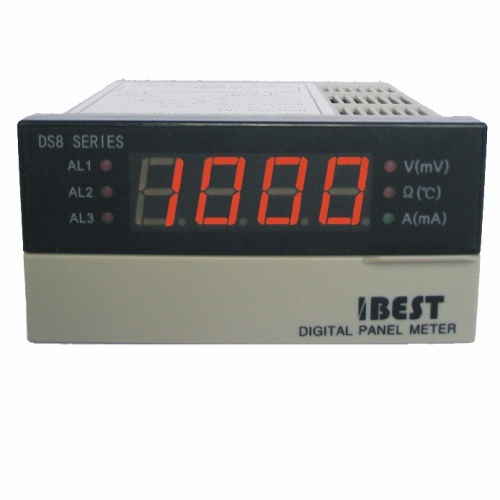

Universal Input DS8-IRRB-DC24V Digital Indicator

https://electronics123.odoo.com/web/image/product.template/9794/image_1920?unique=e2f555c
(0 review)

SKU : IBI-001
Quantity on Hand : 1
Skill Level : Assembled and Tested

Buy 10, Get 5% Off!
Buy 100, Get 10% Off!

DS8-IRRB-DC24V

129.00 129.0 USD 129.00

129.00

Not Available For Sale

  • WeightMajor
  • WeightMinor

This combination does not exist.

ADD TO CART

Description: Panel mount process indicator accepts thermocouples (K, J, E, T, B, R, and S), 0 to 75 mV, 4 to 20 mA, Pt100 RTD, 0 to 10 VDC signals. Isolated 24 VDC output, 4 to 20 mA analog output for retransmission and two alarm relays. 24 VDC powered.

A budget priced panel meter which can be used with Thermocouples, RTD, 4-20mA and voltage signals. Comes with a 4-20mA analog retransmission output. Programmable using the keypad.

Features:
  • Panel mount indicator, size: 48 × 96 × 100 mm

  • Universal input: TC, RTD, mA, mV, 0 to 5 VDC, and 0 to 10 VDC signals

  • 2 alarm relays, contact capacity: AC 250V/3A or DC 30V/3A (resistive load)

  • Isolated analog output: 0 to 10 mA or 4 to 20 mA, configurable by software.

  • Isolated auxiliary 24 VDC output for powering sensors.

  • 24 VDC powered, power consumption ≤5 VA

Specifications:

Power Supply18 to 30 V DC or AC
Power Consumption≤5 VA
Accuracy±0.3% F.S
Sampling Rate<8 times/s
InputB, E, J, K, R, S or T type T/CPt100 RTD, 0 to 75 mV, 0 to 10 VDC, 4 to 20 mA
Alarm Outputs2 SPST Relays
Relay Contact Rating3 A at 250 VAC or 30 VDC (resistive)
Analog OutputSelectable 4 to 20 mA or 0 to 10 mA
Transmitter supplyIsolated 24 VDC, 30 mA
Operating Ambient Temperature0 to 50 °C
Storage Temperature-10 to 60 °C
Humidity35 to 85%
Weight500 g
