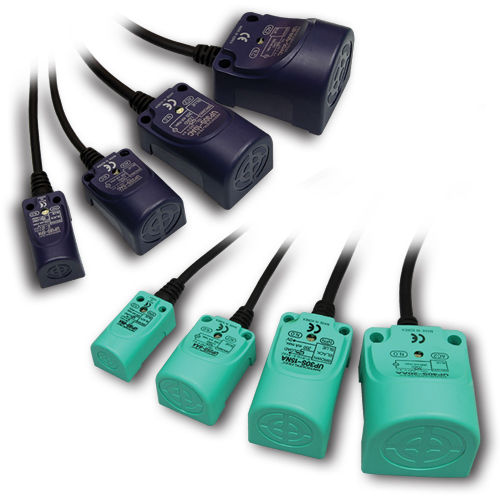

DC Square Proximity Switch NPN Output UP18S-8NA
SKU : HNS-0042
Quantity on Hand :
2
Skill Level : Assembled and Tested
ROHS Compliant
Buy 10, Get 5% Off!
Buy 100, Get 10% Off!
30-day money-back guarantee
Free Shipping in the U.S. on Orders over $75
We offer worldwide shipping as well
Buy now and choose from several shipping methods
Description: DC Square Inductive Proximity Switch UP18S-8NA from Hanyoung Nux (South Korea) comes with a NPN Output and can operate with a 5~35VDC power supply.
Features:
- Proximity switch inductive rectangular shape
- Dimensions 40mm x 18mm x 18mm
- Secure Sensing Range 0-8mm
- Setting Distance: 0-6.4mm
- Suitable for Limit/Speed Switches
- Supply Voltage 5-35VDC
- Degree of Protection IP67
- Maximum Output Current 200mA
- Power Absorbed <6mA
- Voltage Drop <=1.5V
- Operating Frequency 800Hz
- Temperature/Humidity -25 to +70degC/ 35 to 85%RH
