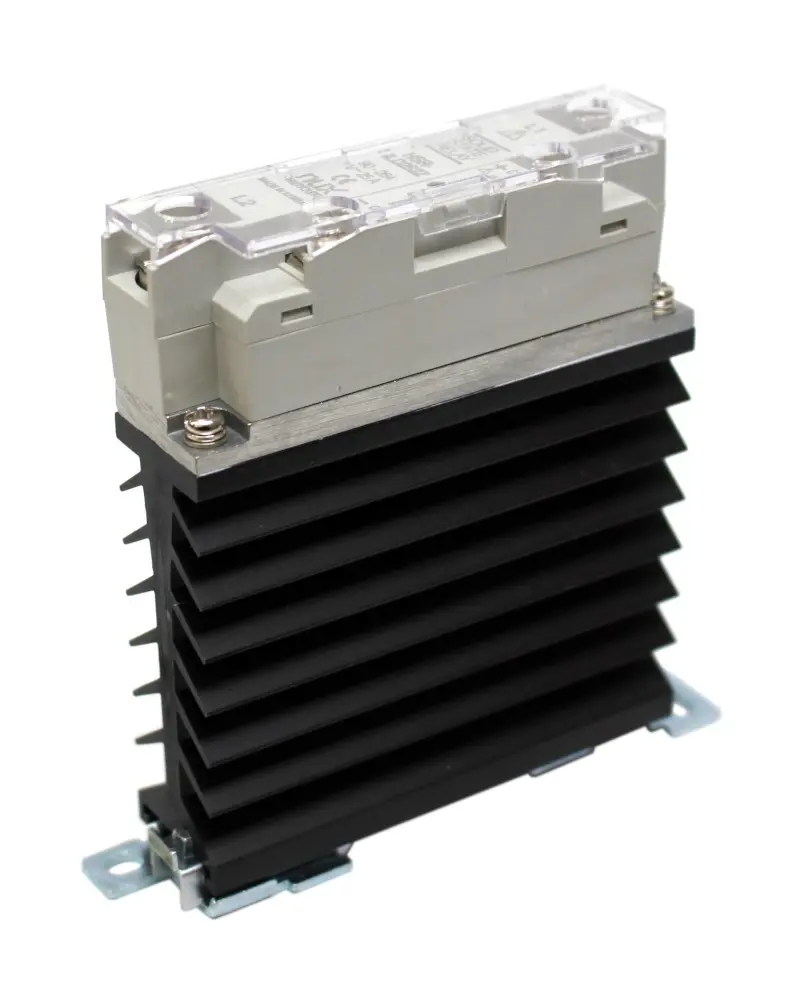

HSR-SLD series Slim Single Phase Solid State Relay 25A 230VAC

The HSR-SLD252Z Solid State Relay from Hanyoung Nux is a 22.5mm wide DIN rail mount solid state relay that offers 4 to 32 VDC input control, with the output rated at 25 ampere at up to 264 VAC. It provides 3000 V RMS opto-isolation between input and output. Comes with cover to minimize contact with live voltages and is mounted on a heat sink for heat dissipation

The SSR switches on and off at the AC signal zero crossing, reducing surge current and EMI

Features:

• Control Voltage Range: 4 to 32 VDC

• Impedance: less than 4 kΩ

• On Voltage: >3 VDC

• Release Voltage:
• Insulating Resistance: ≥ 100 MΩ

• Nominal Line Voltage: 230 VAC

• Load Voltage Range: 90 to 264 VAC

• Non-repetitive Peak Voltage: 600 V

• Rated Load Current: 25 A

• Surge Current 8.3ms: 250 A

• Response Time: ≤11 ms

• Off-state Leakage Current: 20 mA

• On-state Voltage Drop (25 °C): ≤1.6 V
• Operating Temperature: -20 to 80 °C

• Storage Temperature: -30 to 90 °C

• Dimensions: 22.5 × 99 × 99 mm

• Weight: 230 g
