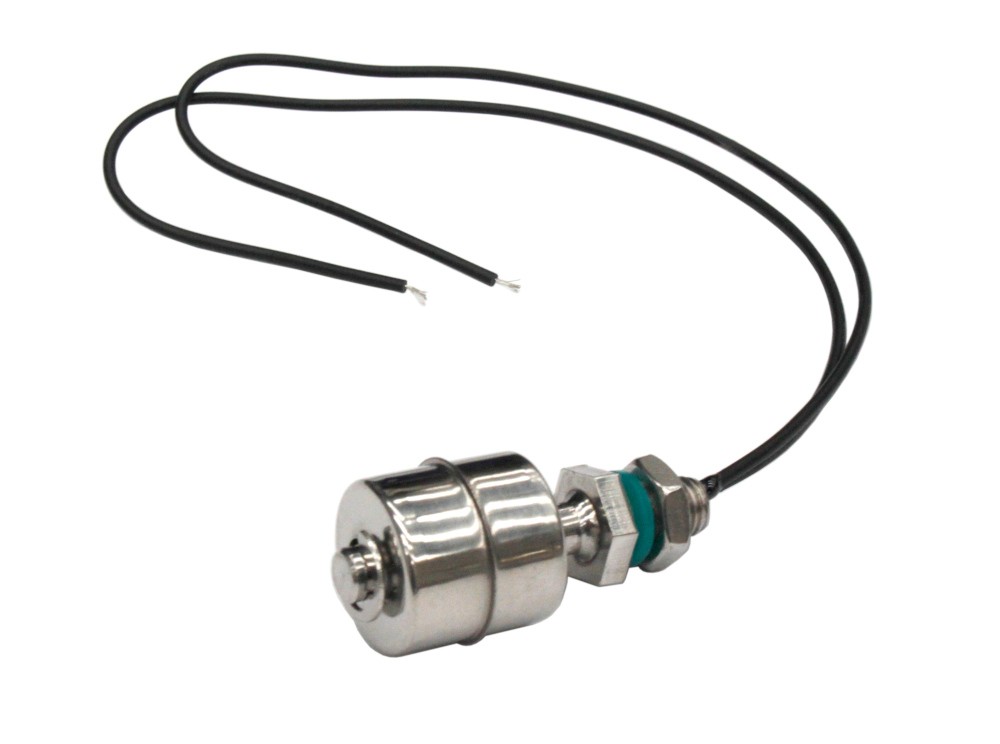

Vertical Mount Stainless Steel Float Switch 45 mm Long

(0 review)

SKU : HES-111
Quantity on Hand : 4
Skill Level : Assembled and Tested

Buy 10, Get 5% Off!
Buy 100, Get 10% Off!

19.40 19.400000000000002 USD 19.40

19.40

  • WeightMajor
  • WeightMinor

This combination does not exist.

Terms and Conditions

Description: Simple to use low cost stainless steel float switch. Can be used in tank level or sump controls. By default the float switch is closed at the bottom position. This can be altered by removing the circlip and flipping the float over and then reinsert the circlip

Specifications:

Switch type:SPST
Max Contact Rating:10 W
Max Switching Voltage:100 VDC
Rated current:0.5 A
Insulation impedance:10 MΩ
Applied temperature:-30 to 125°C
Float Ball & Body Material:SUS304
Mounting hole:M12
Operate time:0.8 ms
Flying lead length:300 mm
Shaft Length:40 mm
