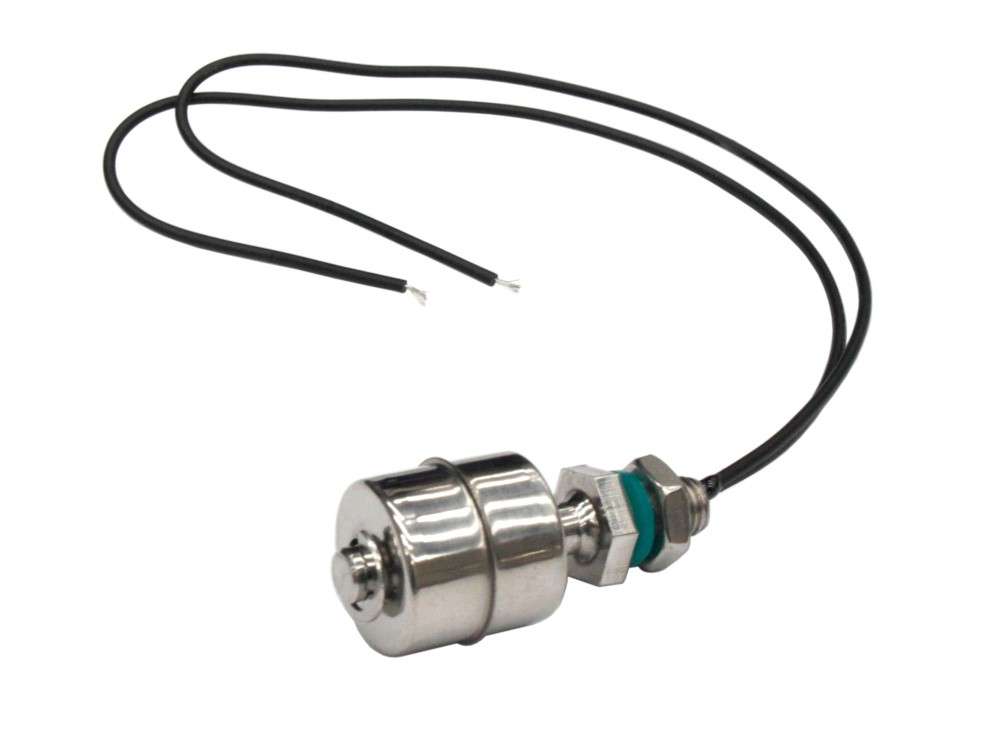

Vertical Mount Stainless Steel Float Switch 45 mm Long
SKU : HES-111
Quantity on Hand :
4
Skill Level : Assembled and Tested
Buy 10, Get 5% Off!
Buy 100, Get 10% Off!
30-day money-back guarantee
Free Shipping in the U.S. on Orders over $75
We offer worldwide shipping as well
Buy now and choose from several shipping methods
Description: Simple to use low cost stainless steel float switch. Can be used in tank level or sump controls. By default the float switch is closed at the bottom position. This can be altered by removing the circlip and flipping the float over and then reinsert the circlip
Specifications:
| Switch type: | SPST |
|---|---|
| Max Contact Rating: | 10 W |
| Max Switching Voltage: | 100 VDC |
| Rated current: | 0.5 A |
| Insulation impedance: | 10 MΩ |
| Applied temperature: | -30 to 125°C |
| Float Ball & Body Material: | SUS304 |
| Mounting hole: | M12 |
| Operate time: | 0.8 ms |
| Flying lead length: | 300 mm |
| Shaft Length: | 40 mm |
