22mm Rotary Potentiometer 10k
SKU : HER-300
Quantity on Hand :
1
Skill Level : Assembled and Tested
Buy 10, Get 5% Off!
Buy 100, Get 10% Off!
30-day money-back guarantee
Free Shipping in the U.S. on Orders over $75
We offer worldwide shipping as well
Buy now and choose from several shipping methods

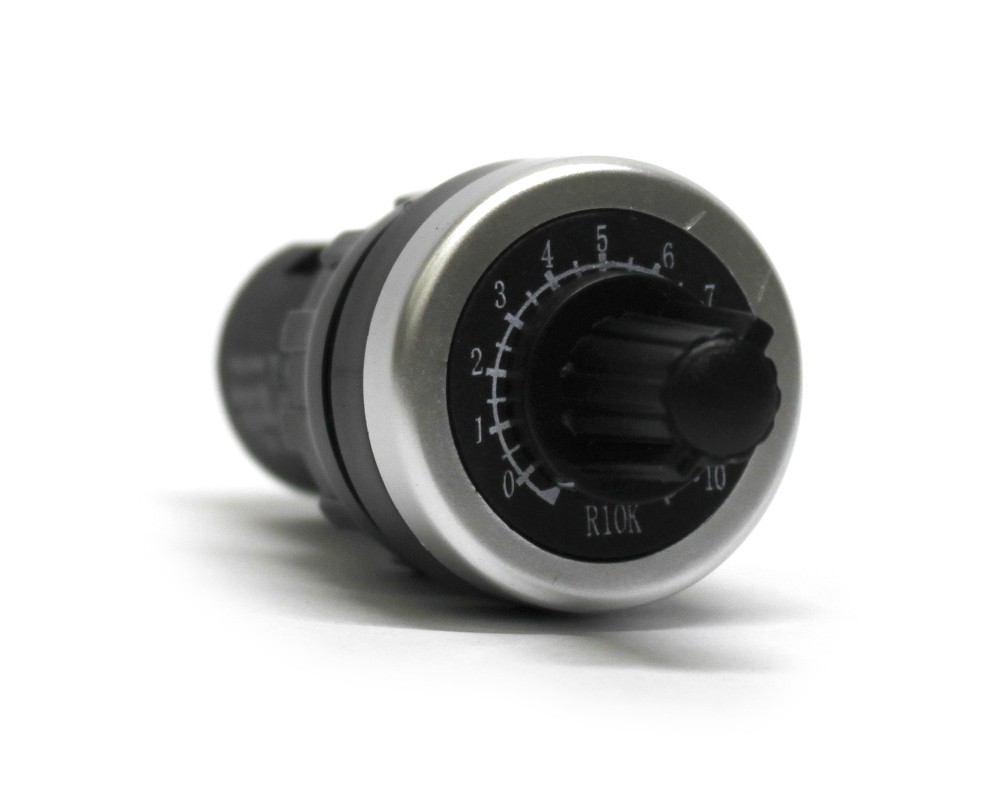

Description: 10 Rotary potentiometer to suit standard 22mm diameter mounting. 10kΩ linear taper (other resistances available on request). Suitable for use with our Variable Frequency Drives and KTA-301 Stepper Motor Controller.
Features:
Resistance: 10kΩ
Taper: Linear
Voltage Rating: 60V
Power Rating: 1/2 Watt
Technology: Carbon Film
Mounting: 22mm hole; chassis mount
Dimensions: 31mm x 66mm
Weight: 50 grams
