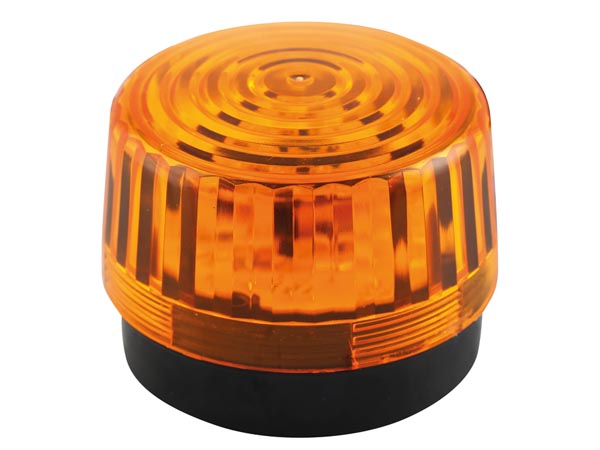

LED Flashing Light - Amber - 12 VDC - 100 mm
SKU : HAA100AN
Quantity on Hand :
2
Skill Level : Assembled and Tested
ROHS Compliant
Buy 10, Get 5% Off!
Buy 100, Get 10% Off!
30-day money-back guarantee
Free Shipping in the U.S. on Orders over $75
We offer worldwide shipping as well
Buy now and choose from several shipping methods
Features:
Specifications:
- indoor use only
Specifications:
- dimensions: ø 100 mm x 75 mm
- LEDs: 15 white LEDs
- rated voltage: 12 VDC
- working voltage: 6 - 15 VDC
- rated current: 100 +/- 10 mA
- flash rate: 80-120 / min.
- material: ABS/acrylic
- wiring:
- black (-)/red (+)
- AWG24
- length: 40 cm
- color: amber
- IP rating: IP20
Documentation and Downloads
