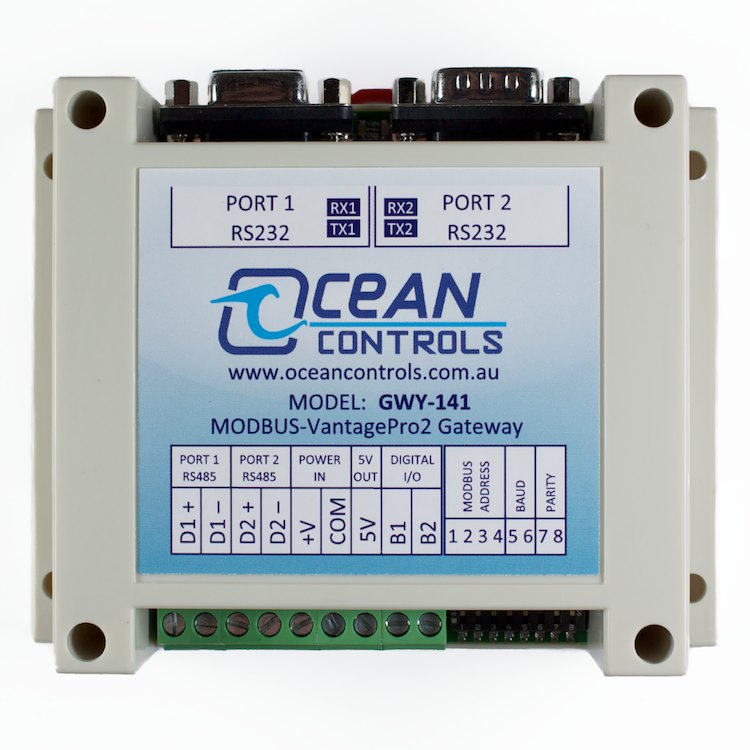

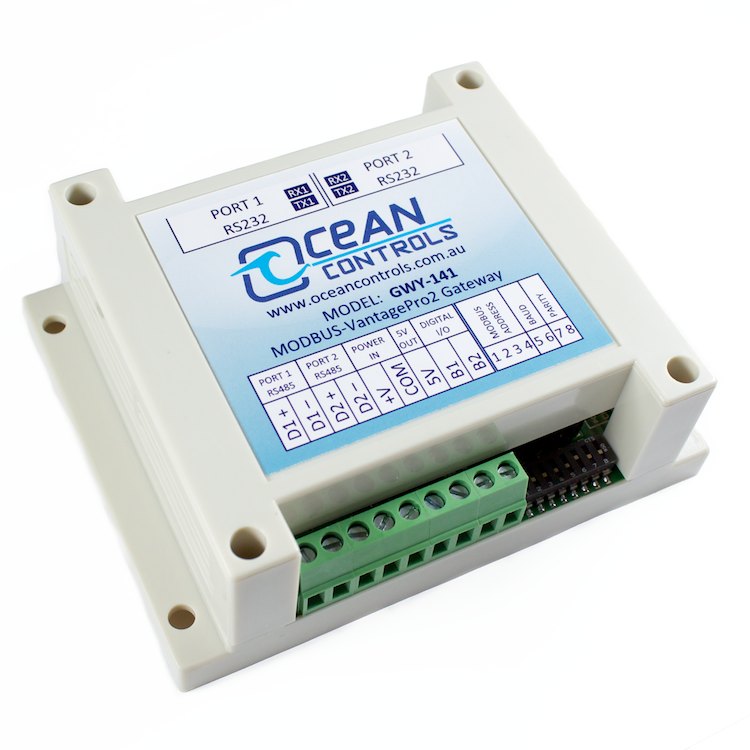

Vantage Pro2 Modbus RTU Interface DIN Rail

https://electronics123.odoo.com/web/image/product.template/4048/image_1920?unique=813a55c
(0 review)

SKU : GWY-141
Quantity on Hand : 2
Skill Level : Assembled and Tested

Buy 10, Get 5% Off!
Buy 100, Get 10% Off!

GWY-141

119.00 119.0 USD 119.00

119.00

Not Available For Sale

  • WeightMajor
  • WeightMinor

This combination does not exist.

Add to cart

Description:

Our Modbus to Davis Vantage Pro2 Weather Station Gateway allows you to easily connect your PLC (Programmable Logic Controller), RTU (remote telemetry unit) or SCADA System to one of the following Davis weather stations:

  • 6152 Cabled Vantage Pro 2
  • 6162 Cabled Vantage Pro 2 Plus
  • 6316 Cabled Weather Envoy (with Cabled ISSISS Plus, ISS Solar Fan Aspirated or ISS Plus Solar Fan Aspirated)
  • 6152 Wireless Vantage Pro 2
  • 6162 Wireless Vantage Pro 2 Plus
  • 6153 Wireless Vantage Pro 2 Fan Aspirated
  • 6163 Wireless Vantage Pro 2 Plus Fan Aspirated
  • 6316 Wireless Weather Envoy (with Wireless ISSISS Plus, ISS Solar Fan Aspirated or ISS Plus Solar Fan Aspirated)

The gateway plugs into the weather station's console using the Davis WeatherLink cable (Weather Link for Vantage Pro Serial) and appears on the Modbus network as a Modbus RTU slave. This allows your programmable controller to monitor and carry out actions based on wind speed, wind direction, temperature etc.

Please Note: The weather station/console/cables/PLC pictured is not included.

Specifications:

  • Power Supply: 8 to 28 VDC
  • Power Consumption: 70mA
  • 2 x Digital I/O: 0-5VDC, max current 30mA (High:≥ 3V, Low: ≤ 1.5V)
  • Operating Temperature: 0 to 70°C
  • Communication:
    • Protocol: Modbus RTU via RS-232 or RS-485
    • Address: 1 to 16
    • Baud rate: 2400, 4800, 9600 or 19200 bps
    • Parity: None, Odd, Even
    • Connects to weather station via RS-232 Com Port 2, Baud rate 19200 bps
  • Readings Update Interval: every 10s
  • Transfer readings:
    • Outdoor Temperature
    • Outdoor Humidity
    • Wind Speed
    • Wind Direction
    • Rainfall (Precipitation)
    • Barometric Pressure
    • Indoor Temperature (console)
    • Indoor Humidity (console)
    • Solar Radiation
    • Daily Rainfall
    • Weekly Rainfall
    • Monthly Rainfall
  • Configurable metric conversion (V5.4)
  • Imperial or Metric Unit Selectable (V5.4 or Later)
  • Comms OK status register indicates the communications between the weather station and gateway is OK
  • Dimensions: 115 × 90 × 40 mm. The unit can be screwed to a panel or mounted to a DIN rail.
