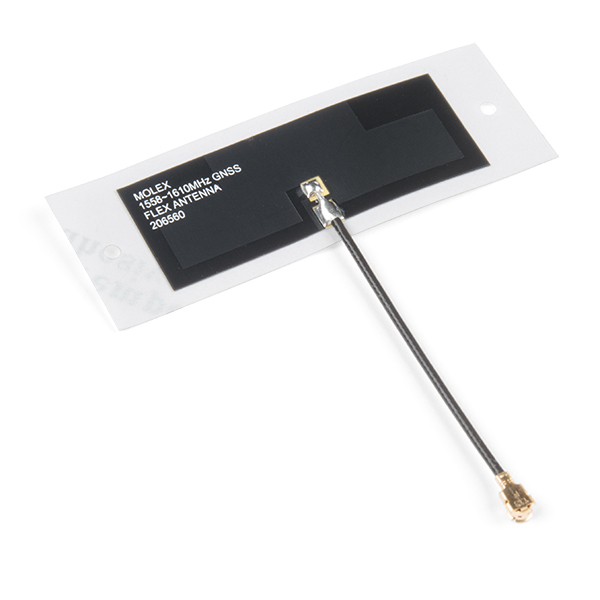

Molex Flexible GNSS Antenna - U.FL (Adhesive)

(0 review)

SKU : GPS-15246
Quantity on Hand : 3
Skill Level : Component or Part
ROHS Compliant

Buy 10, Get 5% Off!
Buy 100, Get 10% Off!

4.95 4.95 USD 4.95

4.95

    This combination does not exist.

    Terms and Conditions

    Share

    Description: The Molex GNSS Flex antenna is a great option for basic GNSS applications and will work with any of our GNSS boards equipped with a U.FL at a fraction of the cost of many of its big brothers. This antenna supports GPS, Galileo, BeiDou, and GLONASS in three different frequency bands (1561 +/-3MHz, 1575 +/-3MHz, 1602 +/-3MHz).

    The Molex Flexible GNSS Antenna has an incredibly small footprint at 40.40mm x 15.40mm, while the adhesive pad is a bit bigger at 56.40mm x 20mm. Even better, the antenna is only 0.1mm thick (or about the thickness of a piece of paper). Simply remove the backing and stick this to any surface, or leave the backing on (just be careful of the fragile U.FL connector).

    Features:

    • Cable length: 50mm
    • Connector: U.FL
    • Radiation Pattern: Omnidirectional
    • Polarization: Linear
    • Weigth: 0.466 g
    • Mounting Style: Adhesive
    • Protocol: BeiDou, Galileo, GLONASS, GPS
    • Return Loss: < -8dB
    • Peak Gain (Max): 1.1 dBi+
    • Efficiency: >74%
    • Input Impedance 50 Ohms
